Same model may have multiple batches, images only for reference.

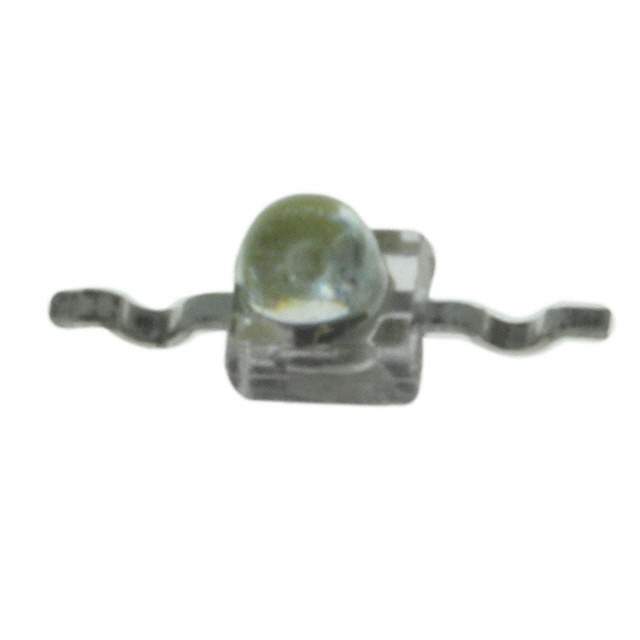

TSMF1030 Real Image
Same model may have multiple batches, images only for reference.

TSMF1030

Part No TSMF1030
Manufacturer Vishay
Catalog Infrared, UV, Visible Emitters
Description EMITTER IR 890NM 100MA SMD
Datasheet
TSMF1030 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Estimated Pruduction Lead Time 27 Weeks
Features Infrared (IR) Emitter 890nm 1.3V 100mA 2.5mW/sr @ 20mA 34° 2-SMD, Yoke Bend
Manufacturer Vishay
Package Reel - TR
Operating Temperature Range -40°C ~ 85°C (TA)
Mounting Surface Mount
Package 2-SMD, Yoke Bend
Family Name TSMF1030
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.40.2000
Other Part Number 751-1219-2, 751-1219-6, 751-1219-1
Quantity per package 1000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 901446-TSMF1030
Ultra Librarian 3D Model Ultra Librarian TSMF1030 CAD Model

Description

The Vishay TSMF1030 is an infrared (IR) emitter with a wavelength of 890nm.

  • Wavelength: 890nm
  • Voltage: 1.3V
  • Current: 100mA
  • Power: 2.5mW/sr @ 20mA
  • Package: 2-SMD, yoke bend
  • Quantity per package: 1000
  • Operating Temperature Range: -40°C to 85°C
  • REACH status: REACH unaffected
  • Supply and demand status: Balanced
