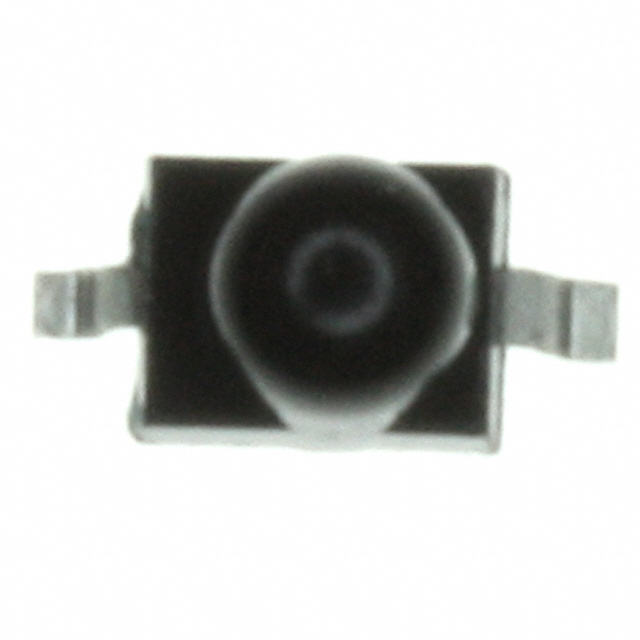

TEMT1020 Vishay TEMT1020 Real Image TEMT1020 label picture
Same model may have multiple batches, images only for reference.
TEMT1020 Vishay TEMT1020 Real Image TEMT1020 label picture
TEMT1020 Vishay TEMT1020 Real Image TEMT1020 label picture
Same model may have multiple batches, images only for reference.

TEMT1020

Part No TEMT1020
Manufacturer Vishay
Catalog Optical Sensors - Phototransistors
Description PHOTOTRANSISTOR 880NM 1.9MM
Datasheet
TEMT1020 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Vishay
Packaging Reel - TR
Status Active
VCEO Maximum Collector-Emitter Breakdown Voltage 70V
Maximum Current Collector 50mA
Current - Dark (Id) (Max) 200nA
Wavelength 880nm
Viewing Angle 30°
Maximum Power Dissipation 100mW
Mounting SMD (SMT)
Orientation Top View
Temperature Range - Operating -40°C to 85°C (TA)
Dimension 2-SMD, Gull Wing
Win Source Part Number 105809-TEMT1020
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TEMT1020 CAD Model

Description

The Vishay 105809-TEMT1020 is an active sensor with a maximum collector-emitter breakdown voltage of 70V and a maximum power dissipation of 100mW.

  • Maximum Collector-Emitter Breakdown Voltage: 70V
  • Maximum Power Dissipation: 100mW
  • Viewing Angle: 30°
  • Wavelength: 880nm
  • Current Rating: 50mA
  • Dark Current: 200nA
  • Package: Surface-mount device (SMD)
  • Orientation: Gull-wing
  • Package Quantity: 3,000 pieces
  • Supply and Demand Status: Balance
