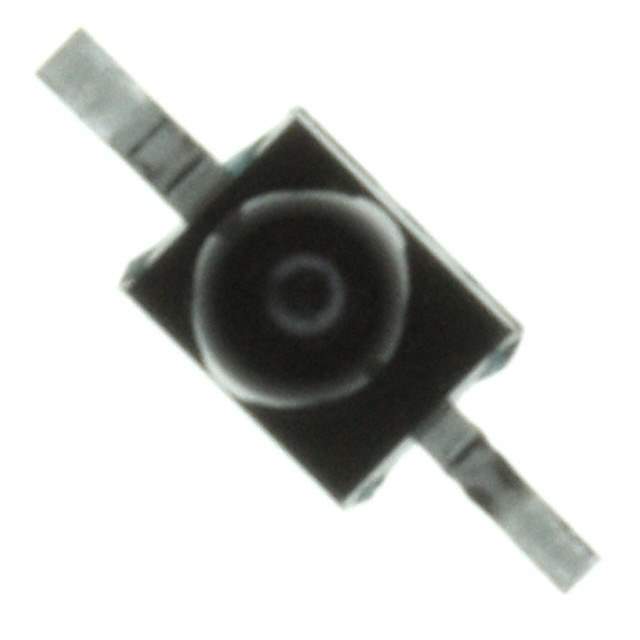

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Vishay
Packaging Reel - TR
Status Active
VCEO Maximum Collector-Emitter Breakdown Voltage 70V
Maximum Current Collector 50mA
Current - Dark (Id) (Max) 200nA
Wavelength 950nm
Viewing Angle 30°
Maximum Power Dissipation 100mW
Mounting SMD (SMT)
Orientation Top View
Temperature Range - Operating -40°C to 85°C (TA)
Dimension 2-SMD, Z-Bend
Win Source Part Number 364507-TEMT1000
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TEMT1000 CAD Model

Description

The TEMT1000 is a high popularity product manufactured by Vishay.

  • Win Source Part Number: 364507-TEMT1000
  • Categories: Sensors and Transducers
  • Viewing Angle: 30 degrees
  • Wavelength: 950nm
  • Operating Temperature Range: -40 degrees Celsius to 85 degrees Celsius
