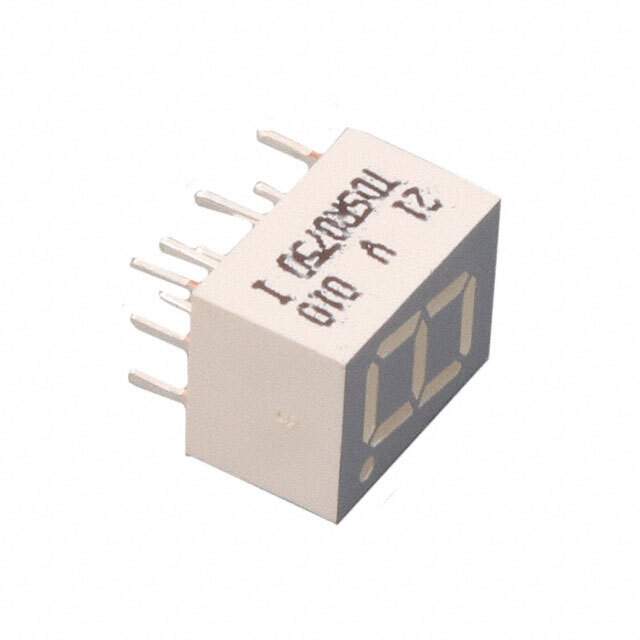

TDSR0750 Real Image
Same model may have multiple batches, images only for reference.

TDSR0750

Part No TDSR0750
Manufacturer Vishay
Catalog Display Modules - LED Character and Numeric
Description DISPLAY LED 7-SEG 0.28" SGL RED  /  Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Anode 1.8V 1mA 0.389" H x 0.291" W x 0.236" D (9.90mm x 7.40mm x 6.00mm)
Datasheet
TDSR0750 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>Display Modules - LED Character and Numeric
Mfr Vishay Semiconductor Opto Division
Package Bulk
Number of Characters 1
Dimension 0.389" H x 0.291" W x 0.236" D (9.90mm x 7.40mm x 6.00mm)
Digit/Alpha Size 0.28" (7.00mm)
Display Type 7-Segment
Common Pin Common Anode
Color Red
Voltage - Forward (Vf) (Typ) 1.8V
Current - Test 1mA
Millicandela Rating 2.2mcd
Wavelength - Peak 650nm
Power Dissipation (Max) 185mW
Base Product Number TDSR0750
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Standard Package 500
Win Source Part Number 1215542-TDSR0750
Ultra Librarian 3D Model Ultra Librarian TDSR0750 CAD Model

Description

The TDSR0750 is a red LED character and numeric display module designed for a 7-segment display.

  • Digit/Alpha Size: 0.28 inches (7.00mm)
  • Common Anode: yes
  • Peak Wavelength: 650nm
  • Voltage Forward (Vf): 1.8V (typical) @ 1mA
  • Millicandela Rating: 2.2mcd
  • Power Dissipation: 185mW (max)
  • Package: bulk (500)
  • Supplier: Vishay Semiconductor Opto Division
  • REACH: unaffected
  • ECCN: EAR99
