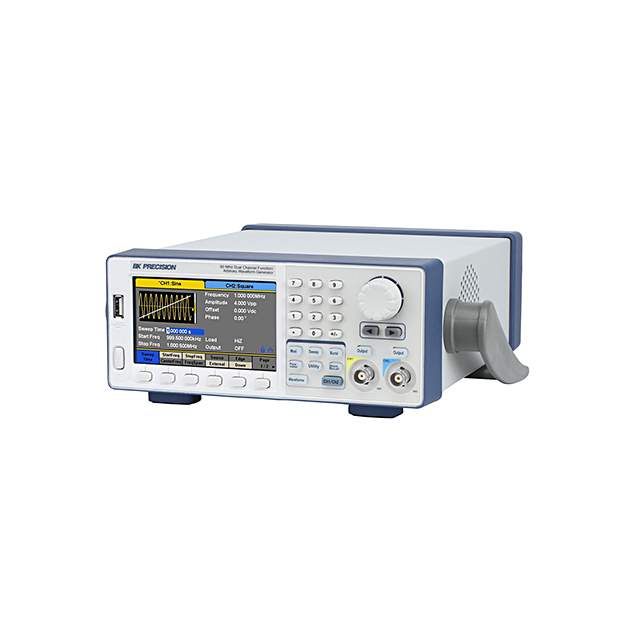

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Test and Measurement>Equipment - Function Generators
Manufacturer B&K Precision
Packaging Box
Type Function Generator, DDS
Function Arbitrary, Sweep
Number of Channels 2
Frequency - Max 25 MHz
Signal Types Sine, Square, Triangle, Ramp, Pulse
Display Type LCD
Supply Voltage 100 ~ 240V
Weight 5.7 lbs (2.6 kg)
RoHS Status Not applicable
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN 3A992A
HTSUS 8543.20.0000
Other Part Number BK4054B
Standard Package 1
Win Source Part Number 1336468-4054B
Ultra Librarian 3D Model Ultra Librarian 4054B CAD Model

Description

The B&K Precision 1336468-4054B is a function generator type equipment with packaging in a box.

  • Generator Type: DDS type generator.
  • Maximum Frequency: 25 MHz.
  • Functions: Arbitrary and sweep function.
  • Weight: 5.7 lbs (2.6 kg).
  • Number of Channels: 2.
  • Signal Types: Sine, square, triangle, ramp, and pulse.
  • Display Type: LCD.
  • Supply Voltage: 100 ~ 240V.
  • RoHS Status: Not applicable.
  • Applications: Test and Measurement applications.
