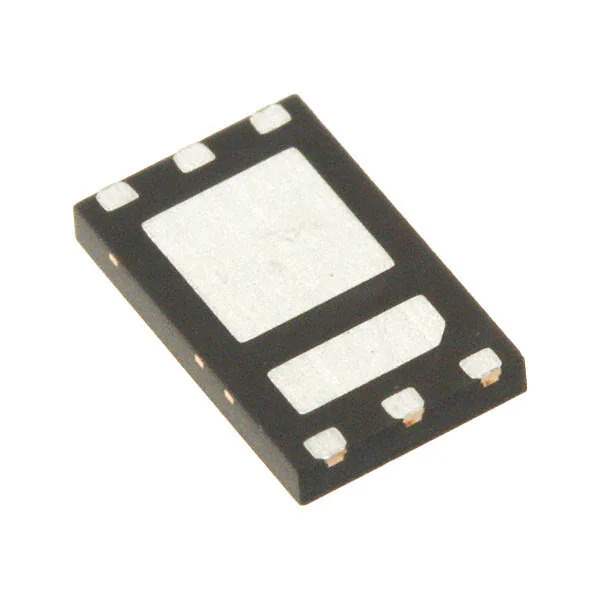

SIZ704DT-T1-GE3 Real Image
Same model may have multiple batches, images only for reference.

SIZ704DT-T1-GE3

Part No SIZ704DT-T1-GE3
Manufacturer Vishay
Catalog FETs - Arrays
Description MOSFET 2N-CH 30V 12A PPAK 1212-8
Datasheet
SIZ704DT-T1-GE3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - FETs, MOSFETs - FET, MOSFET Arrays
Mfr Vishay
Series TrenchFET®
Package Tape & Reel
Product Status Active
Technology MOSFET (Metal Oxide)
Configuration 2 N-Channel (Half Bridge)
FET Feature Logic Level Gate
Drain to Source Voltage (Vdss) 30V
Current - Continuous Drain (Id) @ 25°C 12A, 16A
Rds On (Max) @ Id, Vgs 24mOhm @ 7.8A, 10V
Vgs(th) (Max) @ Id 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 12nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds 435pF @ 15V
Power - Max 20W, 30W
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case 6-PowerPair™
Supplier Device Package 6-PowerPair™
Base Product Number SIZ704
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 667352-SIZ704DT-T1-GE3
Ultra Librarian 3D Model Ultra Librarian SIZ704DT-T1-GE3 CAD Model

Description

The 667352-SIZ704DT-T1-GE3 is a MOSFET transistor array from Vishay's TrenchFET series.

  • Application: discrete semiconductor products, transistors and FET arrays
  • Configuration: two N-Channel MOSFETs in a half-bridge
  • Drain to Source Voltage (Vdss): 30V
  • Continuous Drain Current (Id): 12A and 16A @ 25°C
  • On-Resistance (Rds On): 24mOhm @ 7.8A and 10V
  • Gate Charge (Qg): 12nC @ 10V
  • Input Capacitance (Ciss): 435pF @ 15V
  • Temperature Range: -55°C to 150°C
  • Mounting: surface mountable
  • Package: 6-PowerPair
