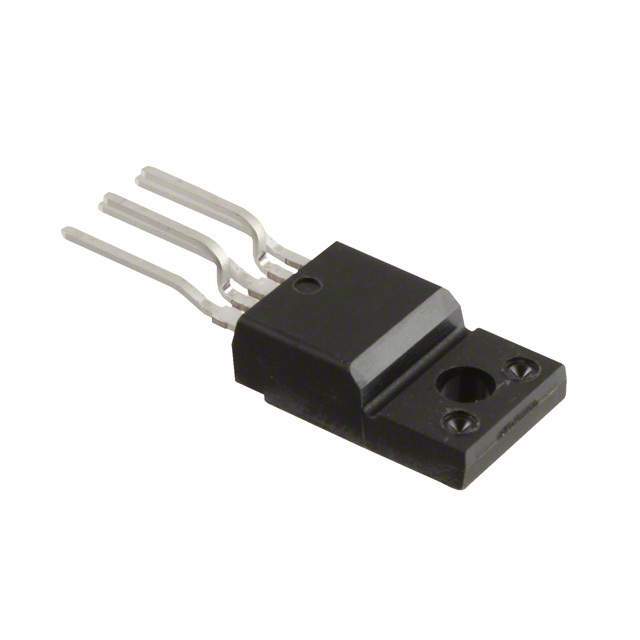

Same model may have multiple batches, images only for reference.

IRFI4024H-117P

Name: IRFI4024H-117P
Brand: Infineon Technologies
SKU: 604947
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	IRFI4024H-117P
Manufacturer	Infineon Technologies
Catalog	FETs - Arrays
Description	DIGITAL AUDIO MOSFET \| MOSFET 2N-CH 55V 11A TO-220FP-5
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Infineon Technologies
Packaging	Tube
Status	Obsolete
Transistor Polarity	2 N-Channel (Dual)
FET Feature	Standard
Vds - Drain-Source Breakdown Voltage	55V
Id - Continuous Drain Current	11A
Rds On (Maximum) at Id, Vgs	60mOhm at 7.7A, 10V
Gate Source Voltage(th) (Maximum) at Id	4V at 25μA
Gate Charge (Qg) (Maximum) at Vgs	13nC at 10V
Input Capacitance (Ciss) (Maximum) at Vds	320pF at 50V
Maximum Power	14W
Temperature Range - Operating	-55°C ~ 150°C
Mounting Style	Through Hole
Manufacturer Package	TO-220-5 Full Pack
Supplier Device Package	TO-220-5 Full-Pak
Manufacturer Pack Quantity	50
MSL Level	1 (Unlimited)
Win Source Part Number	1187635-IRFI4024H-117P
Manufacturer Homepage	www.irf.com
Popularity	Medium
Supply and Demand Status	Sufficient
Ultra Librarian 3D Model	Ultra Librarian IRFI4024H-117P CAD Model

Alternative Products

Description

The IRFI4024H-117P is a dual N-channel MOSFET transistor designed for use in a wide range of applications, and is manufactured by Infineon Technologies.

Maximum power rating: 14W
Drain-source breakdown voltage: 55V
Packaged in a TO-220-5 Full-Pak and is suitable for through-hole mounting.
Popularity: medium
Supply and demand status: sufficient
