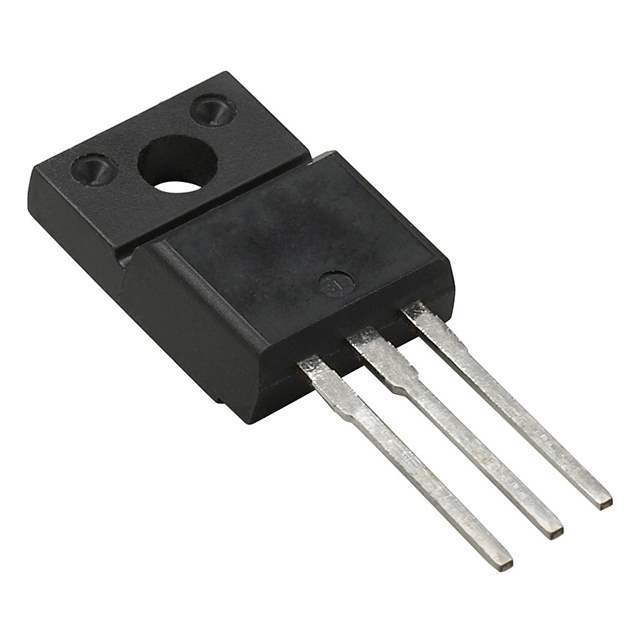

Same model may have multiple batches, images only for reference.
SIHA6N80AE-GE3 Vishay Siliconix
Same model may have multiple batches, images only for reference.

SIHA6N80AE-GE3

Part No SIHA6N80AE-GE3
Manufacturer Vishay
Catalog FETs - Single
Description MOSFET N-CH 800V 5A TO220
Datasheet
SIHA6N80AE-GE3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1203867-SIHA6N80AE-GE3
Manufacturer Vishay Siliconix
Category Discrete Semiconductor Products -Transistors -FETs, MOSFETs -Single FETs, MOSFETs
Series E
Package Tube
Product Status Active
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 800 V
Rds On (Max) @ Id, Vgs 950mOhm @ 2A, 10V
Vgs(th) (Max) @ Id 4V @ 250µA
Ultra Librarian 3D Model Ultra Librarian SIHA6N80AE-GE3 CAD Model

Description

FEATURES
• Low figure-of-merit (FOM) Ron x Qg
• Low effective capacitance (Ciss)
• Reduced switching and conduction losses
• Ultra low gate charge (Qg)
• Avalanche energy rated (UIS)
• Integrated Zener diode ESD protection
• Material categorization: for definitions of compliance please see www.vishay.com/doc?99912
