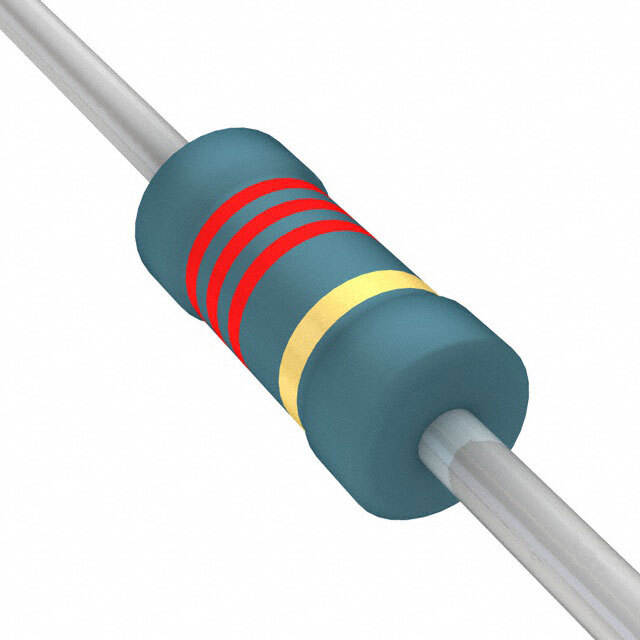

Same model may have multiple batches, images only for reference.
SFR16S0002201JA500 Vishay
Same model may have multiple batches, images only for reference.

SFR16S0002201JA500

Part No SFR16S0002201JA500
Manufacturer Vishay
Catalog Through Hole Resistors
Description RES 2.2K OHM 1/2W 5% AXIAL / Res Metal Film 2.2K Ohm 5% 0.5W(1/2W) ±100ppm/°C Conformal Coated AXL Ammo
Datasheet
SFR16S0002201JA500 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Manufacturer Vishay BC Components
Series SFR16S
Packaging Tape in Box
Resistance (Ohms) 2.2k
Tolerance ±5%
Power (Watts) 0.5W, 1/2W
Composition Metal Film
Temperature Coefficient ±100ppm/°C
Operating Temperature Range -55°C ~ 155°C
Package Axial
Dimension 0.075" Dia x 0.138" L (1.90mm x 3.50mm)
Number of Terminations 2
Win Source Part Number 770988-SFR16S0002201JA500
Popularity Medium
Supply and Demand Status Limited
Family Name SFR16S
Introduction Date September 15, 2006
ECCN EAR99
Country of Origin Czech Republic
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian SFR16S0002201JA500 CAD Model

Description

The Vishay BC Components 770988-SFR16S0002201JA500 is a metal film resistor with a resistance of 2.2k Ohms and a power rating of 0.5W. It has a tolerance of ±5% and a temperature coefficient of ±100ppm/°C.

  • Resistance: 2.2k Ohms
  • Power: 0.5W
  • Tolerance: ±5%
  • Temperature Coefficient: ±100ppm/°C
  • Series: SFR16S
  • Operating Temperature: -55°C to 155°C
