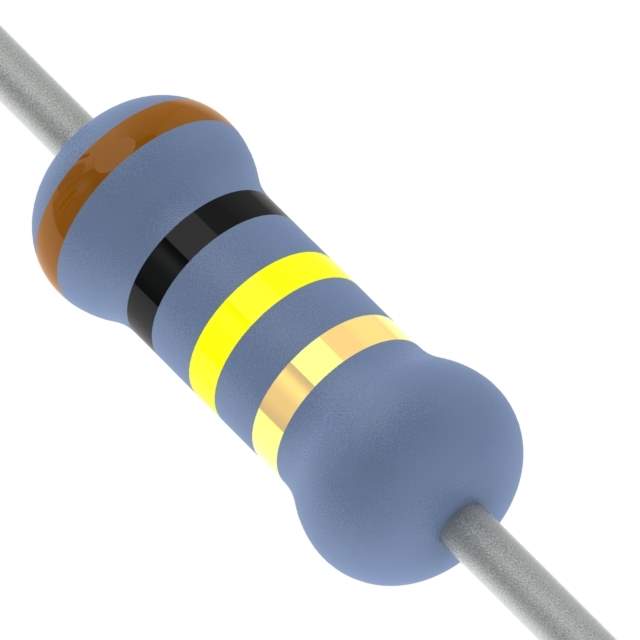

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Resistors
Manufacturer Stackpole Electronics Inc.
Packaging AMMO PACKAGE
Status Active
Resistance (Ohms) 100k
Tolerance ±5%
Power (Watts) 1W
Composition Metal Oxide Film
Features Flame Retardant Coating, Safety
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C to 235°C
Case / Package Axial
Number of Terminations 2
Win Source Part Number 1092777-RSF1JA100K
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian RSF1JA100K CAD Model

Description

The Stackpole Electronics Inc. RSF1JA100K is a metal oxide film resistor with a power rating of 1W and a resistance of 100k ohms.

  • Power Rating: 1W
  • Resistance: 100k ohms
  • Tolerance: ±5%
  • Temperature Coefficient: ±200ppm/°C
  • Terminations: 2
  • Mounting: designed for axial mounting
  • Coating: flame retardant coating
  • Safety Certified: Yes
  • Supply and Demand Status: balanced
  • Operating Temperature Range: -55°C to 235°C
