Same model may have multiple batches, images only for reference.

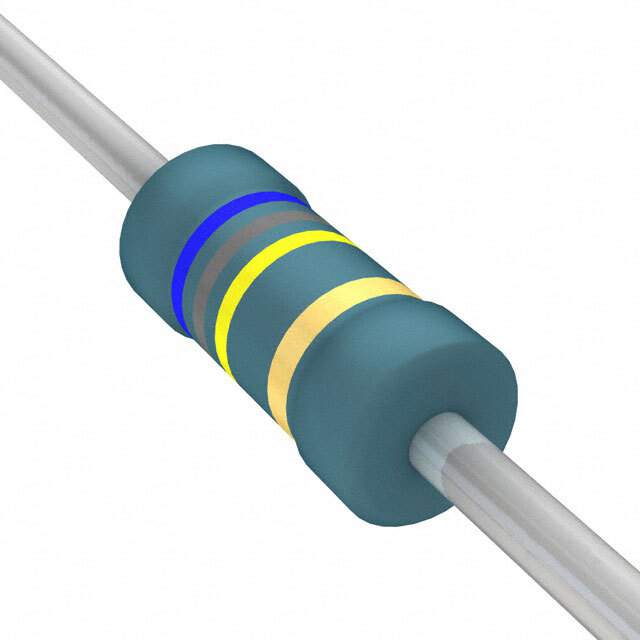

HVR3700006803JR500 Real Image
Same model may have multiple batches, images only for reference.

HVR3700006803JR500

Part No HVR3700006803JR500
Manufacturer Vishay
Catalog Through Hole Resistors
Description RES 680K OHM 1/2W 5% AXIAL / 680 kOhms ±5% 0.5W, 1/2W Through Hole Resistor Axial Flame Retardant Coating, High Voltage, Pulse Withstanding, Safety Metal Film
Datasheet
HVR3700006803JR500 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Through Hole Resistors
Mfr Vishay Beyschlag/Draloric/BC Components
Series HVR37
Package Tape & Reel (TR),Cut Tape (CT)
Resistance 680 kOhms
Tolerance ±5%
Power (Watts) 0.5W, 1/2W
Composition Metal Film
Features Flame Retardant Coating, High Voltage, Pulse Withstanding, Safety
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case Axial
Supplier Device Package Axial
Dimension 0.157" Dia x 0.394" L (4.00mm x 10.00mm)
Number of Terminations 2
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0090
Other Names 2306 242 23684,HVR3700003683JR500,PPCHJ680KCT,PPCHJ680KTR,230624223684,5053HV680K0J12AFX
Standard Package 5,000
Win Source Part Number 974972-HVR3700006803JR500
Ultra Librarian 3D Model Ultra Librarian HVR3700006803JR500 CAD Model

Description

The Vishay HVR3700006803JR500 is a high-quality through-hole resistor that is designed to provide excellent performance in a variety of applications.

  • Mounting Type: Through-Hole
  • Composition: Metal Film
  • Resistance: 680 kOhms
  • Tolerance: ±5%
  • Temperature Coefficient: ±200ppm/°C
  • RoHS Compliant: Yes
  • ECCN: EAR99
  • Manufacturer: Vishay Beyschlag/Draloric/BC Components
