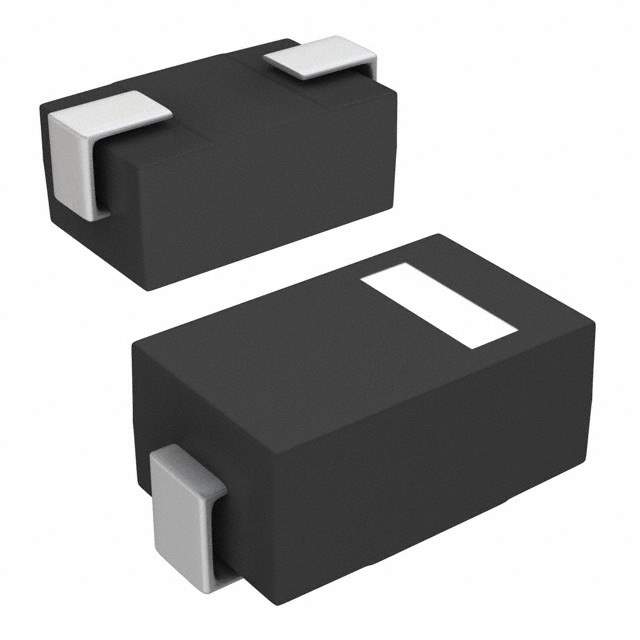

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Reel - TR
Status Active
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 200V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 1.3V @ 1A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 150ns
Current - Reverse Leakage @ Vr 5μA @ 200V
Capacitance @ Vr, F 8.5pF @ 4V, 1MHz
Mounting SMD (SMT)
Case / Package DO-214BA (GF1)
Operating Temperature - Junction -65°C to 175°C
Win Source Part Number 097149-RGF1D-E3/67A
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian RGF1D-E3/67A CAD Model

Description

The Vishay 097149-RGF1D-E3/67A is a standard diode with a maximum reverse voltage of 200V and an average rectified current of 1A.

  • Forward Voltage: It has a forward voltage of 1.3V @ 1A
  • Reverse Recovery Time (trr): and a reverse recovery time (trr) of 150ns.
  • Reverse Leakage Current: It also has a reverse leakage current of 5μA @ 200V
  • Capacitance: and a capacitance of 8.5pF @ 4V, 1MHz.
  • Speed: This product has a fast recovery speed of 200mA (Io)
  • Package: and comes in a DO-214BA (GF1) package.
