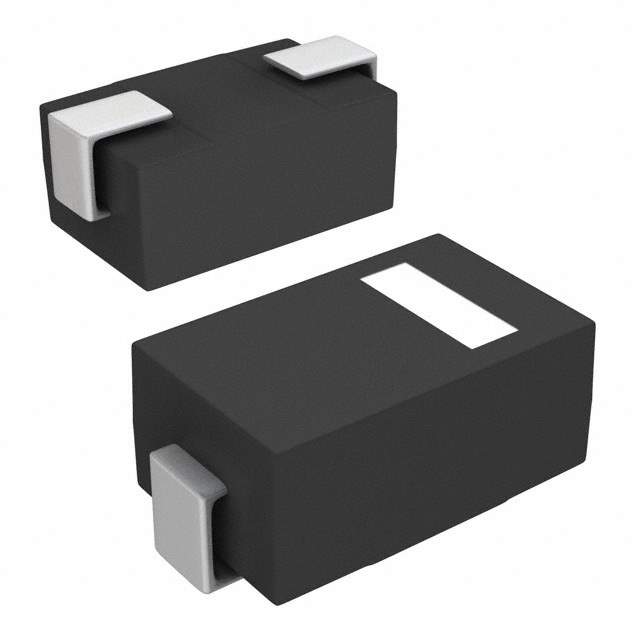

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Reel - TR
Status Active
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 200V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 1.3V @ 1A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 150ns
Current - Reverse Leakage @ Vr 5μA @ 200V
Capacitance @ Vr, F 8.5pF @ 4V, 1MHz
Mounting SMD (SMT)
Case / Package DO-214BA (GF1)
Operating Temperature - Junction -65°C to 175°C
Win Source Part Number 1040940-RGF1D-E3/5CA
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian RGF1D-E3/5CA CAD Model

Description

This SMD (SMT) diode is manufactured by Vishay and has a Win Source Part Number of 1040940-RGF1D-E3/5CA.

  • Type: Standard
  • Reverse Voltage: 200V
  • Average Rectified Current: 1A
  • Voltage Forward (Vf): 1.3V @ 1A
  • Reverse Recovery Time (trr): 150ns
  • Current - Reverse Leakage @ Vr: 5μA @ 200V
  • Capacitance @ Vr, F: 8.5pF @ 4V, 1MHz
  • Speed: Fast Recovery 200mA (Io)
  • Status: Active
  • Temperature Range: -65°C to 175°C
  • Case / Package: DO-214BA (GF1)
