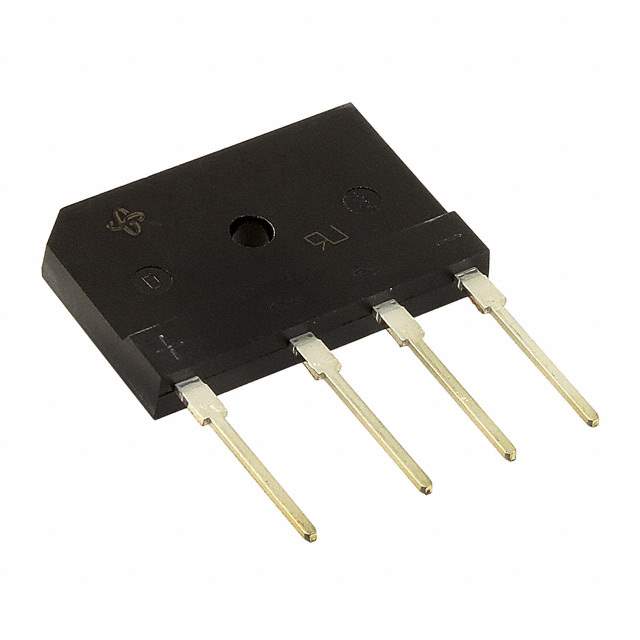

The PB4008 is a rectifier diode manufactured by Vishay. It is designed to convert alternating current (AC) to direct current (DC) efficiently and reliably. Rectifier diodes are fundamental components in power supplies and various electronic circuits.
Applications:
- Power supplies
- Battery chargers
- AC-DC adapters
- Motor controllers
- General rectification circuits
Features:
- High surge current capability
- Low forward voltage drop
- High reliability
- Compact size
- Lead-free finish
Benefits:
- Efficient Rectification: Converts AC to DC with minimal power loss due to its low forward voltage drop.
- High Surge Current Handling: Withstands large surge currents, making it suitable for applications with transient voltage spikes.
- Reliable Performance: Provides consistent and dependable operation over a wide range of operating conditions.
- Compact Design: Saves valuable board space due to its small size.
- Environmentally Friendly: Lead-free finish ensures compliance with environmental regulations.
Additional Details:
The PB4008 is typically used in bridge rectifier circuits, where multiple diodes are configured to convert AC voltage to DC voltage. It's surge current capability is an important feature for protecting circuits from damage caused by sudden power surges. The low forward voltage drop minimizes power dissipation and improves overall circuit efficiency. It is available in various package styles, with consideration to specific PCB design and thermal management requirements for the end application.
