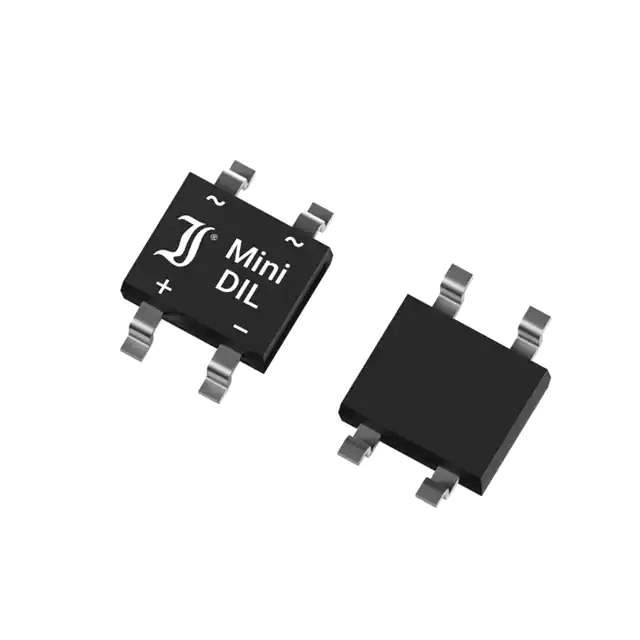

S500 Real Image
Same model may have multiple batches, images only for reference.

S500

Part No S500
Manufacturer DIOTEC Electronics Corporation
Catalog Bridge Rectifiers
Description 1PH BRIDGE MINIDIL 1000V 0.8A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr DIOTEC Electronics Corporation
Package Tape & Reel
Product Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 1 kV
Current - Average Rectified (Io) 800 mA
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 800 mA
Current - Reverse Leakage @ Vr 5 µA @ 1000 V
Temperature Range - Operating -50°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case TO-269AA, 4-BESOP
Supplier Device Package TO-269AA MINIDIL SLIM
Standard Package 5,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
HTSUS 8541.10.0000
Win Source Part Number 662758-S500
Ultra Librarian 3D Model Ultra Librarian S500 CAD Model

Description

The 662758-S500 is a bridge rectifier diode designed for rectification applications.

  • Phase: single-phase diode
  • Average Rectified Current: 800mA
  • Maximum Forward Voltage: 1.1V @ a forward current of 800mA
  • Reverse Leakage Current: 5µA @ a reverse voltage of 1000V
  • Type: surface mount
  • Standard Package: 5,000 pcs
  • Product Status: active
  • Manufacturer: DIOTEC Electronics Corporation
