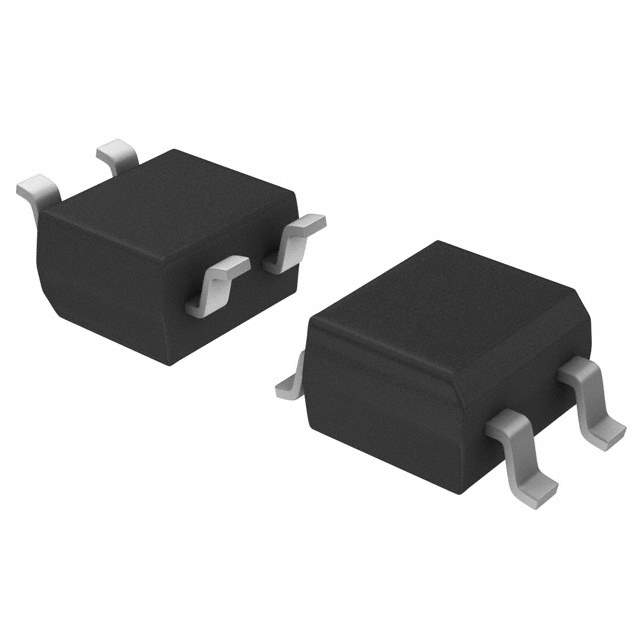

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Reel - TR
Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 200V
Current - Average Rectified (Io) 500mA
Voltage - Forward (Vf) (Max) @ If 1V @ 400mA
Current - Reverse Leakage @ Vr 5μA @ 200V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package TO-269AA (MBS)
Win Source Part Number 022349-MB2S-E3/80
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Family Name MB2S
Introduction Date July 10, 1998
ECCN EAR99
Country of Origin China
Halogen Free Not Compliant
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian MB2S-E3/80 CAD Model

Description

The Vishay MB2S-E3/80 is a single-phase standard diode that is ideal for use in discrete semiconductor products.

  • Average Rectified Current: 500mA.
  • Maximum Forward Voltage: 1V @ 400mA.
  • Peak Reverse Voltage: 200V.
  • Package: Packaged on a reel, making it easy to use in SMD (SMT) applications.
  • Temperature Range: -55°C to 150°C (TJ).
  • Family: MB2S family.
  • Case: TO-269AA (MBS) case.
  • Popularity: Common-used part with high popularity.
  • Supply and Demand Status: Sufficient.
  • Halogen-Free Compliance: Not compliant with halogen-free regulations.
  • Country of Origin: Made in China.
  • Estimated EOL Date: 2031.
