Products specifications

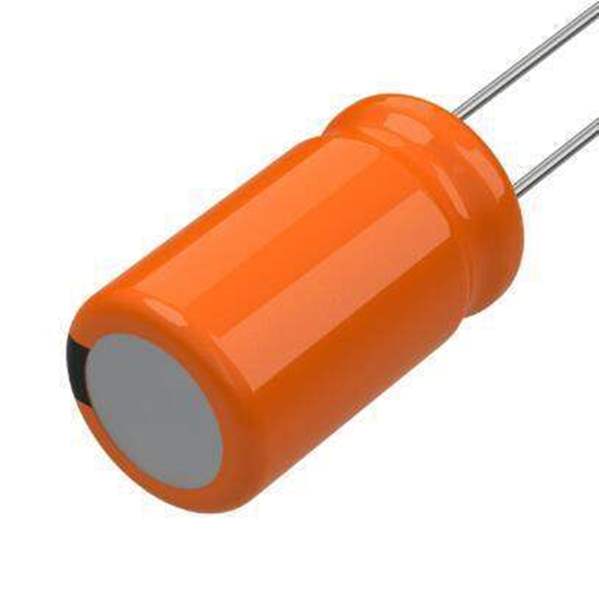

Manufacturer Vishay Beyschlag/Draloric/BC Components
Category Capacitors Electric Double Layer Capacitors (EDLC), Supercapacitors
Part Status Active
Capacitance 20 F
Tolerance -20%, +50%
Voltage - Rated 3 V
ESR (Equivalent Series Resistance) 22mOhm @ 1kHz
Lifetime @ Temp. 2000 Hrs @ 85°C
Termination PC Pins
Mounting Type Through Hole
Package / Case Radial, Can
Size / Dimension 0.630" Dia (16.00mm)
Win Source Part Number WS1307375-MAL223051003E3
Ultra Librarian 3D Model Ultra Librarian MAL223051003E3 CAD Model

Description

20 F (EDLC) Supercapacitor 3 V Radial, Can 22mOhm @ 1kHz 2000 Hrs @ 85°C
