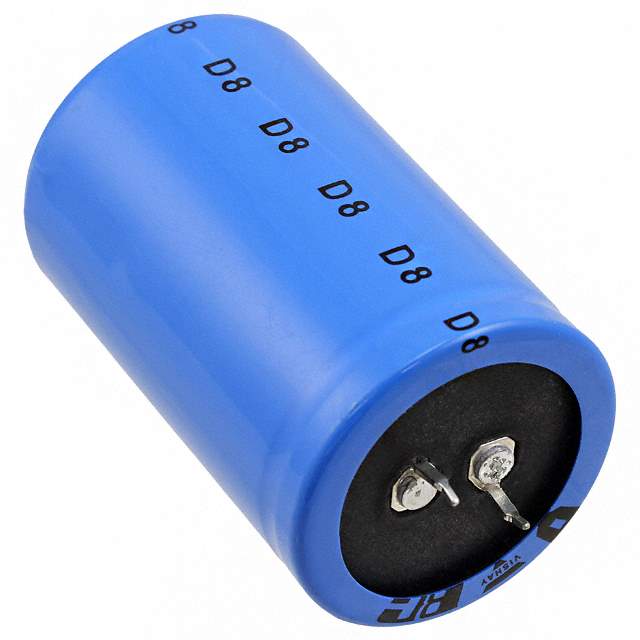

Same model may have multiple batches, images only for reference.

MAL215629222E3

Name: MAL215629222E3
Brand: Vishay
SKU: 629074
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	MAL215629222E3
Manufacturer	Vishay
Catalog	Aluminum Capacitors
Description	Aluminum Capacitors Aluminum Capacitors \| CAP ALUM 2200UF 20% 100V SNAP
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Capacitors
Manufacturer	Vishay BC Components
Packaging	Bulk
Capacitance	2200μF
Tolerance	±20%
Voltage - Rated	100V
ESR (Equivalent Series Resistance)	164mOhm at 100Hz
Lifetime at Temp.	5000 Hrs at 85°C
Temperature Range - Operating	-40°C ~ 85°C
Polarization	Polar
Applications	General Purpose
Ripple Current at Low Frequency	2.77A at 100Hz
Impedance	154 mOhms
Lead Spacing	0.394" (10.00mm)
Parts Dimension	0.984" Dia (25.00mm)
Height - Seated (Maximum)	1.654" (42.00mm)
Mounting Style	Through Hole
Manufacturer Package	Radial, Can - Snap-In
Manufacturer Pack Quantity	100
MSL Level	Not Applicable
Win Source Part Number	1211762-MAL215629222E3
Manufacturer Homepage	www.vishay.com
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian MAL215629222E3 CAD Model

Description

The MAL215629222E3 is a 2200μF, 100V radial, can-snap-in capacitor manufactured by Vishay BC Components.

Capacitance: 2200μF
Voltage: 100V
Package: radial, can-snap-in
Supply and Demand Status: limited, may be difficult to find in the open market
Benefit: reliable capacitor that provides high capacitance and low ESR for a variety of applications.
Polarized: Yes
Tolerance: ±20%
