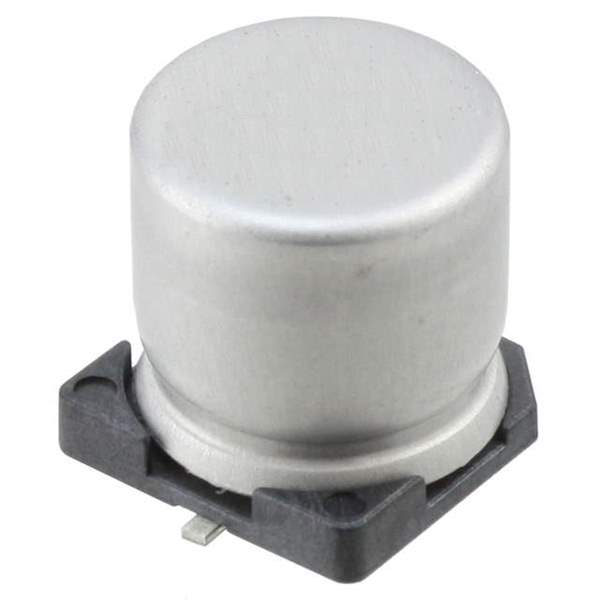

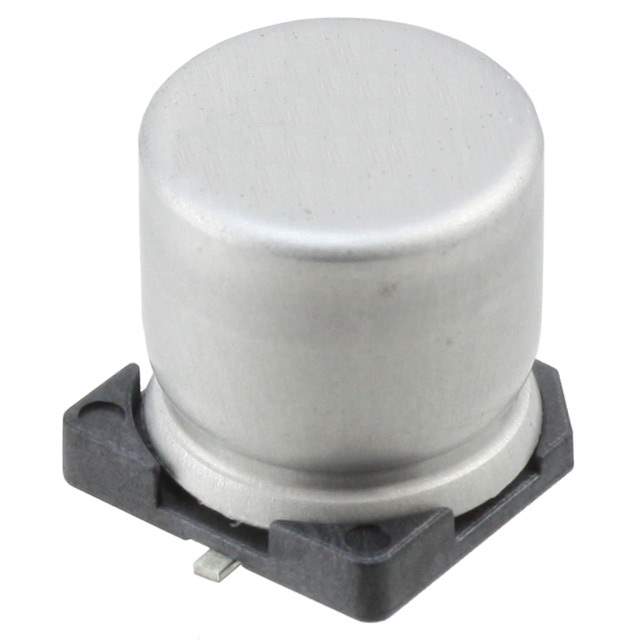

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Capacitors
Manufacturer Vishay
Packaging Bulk
Status Active
Capacitance 680μF
Tolerance ±20%
Voltage Rating 35V
Lifetime @ Temp. 6000 Hrs @ 125°C
Temperature Range - Operating -55°C to 125°C
Polarization Polar
Applications Automotive
Ripple Current - Low Frequency 660mA @ 100Hz
Impedance 80 mOhm
Height - Seated (Max) 0.689" (17.50mm)
Surface Mount Land Size 0.654" L x 0.654" W (16.60mm x 16.60mm)
Mounting SMD (SMT)
Dimension Radial, Can - SMD
Win Source Part Number 073235-MAL214099014E3
Ultra Librarian 3D Model Ultra Librarian MAL214099014E3 CAD Model

Description

The MAL214099014E3 is a surface-mount aluminum electrolytic capacitor manufactured by Vishay.

  • Voltage Rating: 35V
  • Capacitance: 680μF
  • Tolerance: ±20%
  • Impedance: 80 mOhm
  • Lifetime: 6000 hours @ 125°C
  • Polarization: Polar
  • Ripple Current: 660mA @ 100Hz
  • Application: Automotive and power electronics
