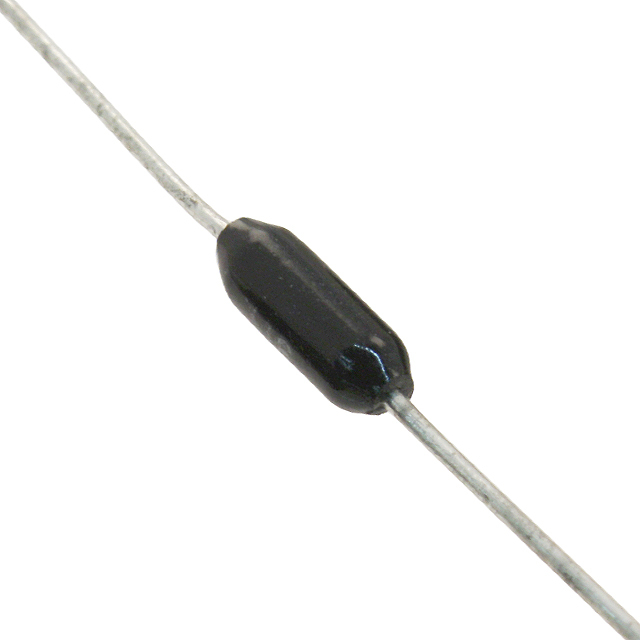

Same model may have multiple batches, images only for reference.
HVR2500005603FR500 Vishay – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

HVR2500005603FR500

Part No HVR2500005603FR500
Manufacturer Vishay
Catalog Through Hole Resistors
Description RES 560K OHM 1/4W 1% AXIAL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Resistance 560 kOhms
Tolerance ±1%
Power (Watts) 0.25W, 1/4W
Composition Metal Film
Features Flame Retardant Coating, High Voltage, Pulse Withstanding, Safety
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Case / Package Axial
Supplier Device Package Axial
Size / Dimension 0.098" Dia x 0.256" L (2.50mm x 6.50mm)
Number of Terminations 2
Package Tape & Reel
Supply and Demand Status Normal
Win Source Part Number 1579360-HVR2500005603FR500
Ultra Librarian 3D Model Ultra Librarian HVR2500005603FR500 CAD Model
