Same model may have multiple batches, images only for reference.

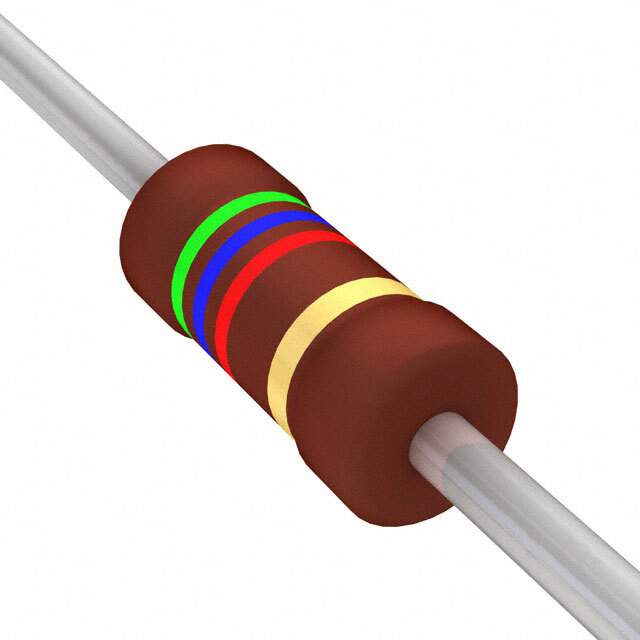

PR02000205601JA100 Real Image
Same model may have multiple batches, images only for reference.

PR02000205601JA100

Part No PR02000205601JA100
Manufacturer Vishay
Catalog Through Hole Resistors
Description RES 5.6K OHM 5% 2W AXIAL / 5.6 kOhms ±5% 2W Through Hole Resistor Axial Automotive AEC-Q200 Metal Film
Datasheet
PR02000205601JA100 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Through Hole Resistors
Mfr Vishay Beyschlag/Draloric/BC Components
Series PR02
Package Cut Tape (CT),Tape & Box (TB)
Resistance 5.6 kOhms
Tolerance ±5%
Power (Watts) 2W
Composition Metal Film
Features Automotive AEC-Q200
Temperature Coefficient ±250ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case Axial
Supplier Device Package Axial
Dimension 0.154" Dia x 0.394" L (3.90mm x 10.00mm)
Number of Terminations 2
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0090
Other Names BC4809CT,BC4809TB
Standard Package 1,000
Win Source Part Number 972124-PR02000205601JA100
Ultra Librarian 3D Model Ultra Librarian PR02000205601JA100 CAD Model

Description

The PR02000205601JA100 is a through-hole resistor manufactured by Vishay Beyschlag/Draloric/BC Components. The product belongs to the Resistors>Through Hole Resistors category and is a part of the PR02 series. The product is a 2W metal film resistor with a resistance of 5.6 kOhms and a tolerance of ±5%. The temperature coefficient is ±250ppm/°C. The product is an automotive AEC-Q200 component. The package is either a cut tape (CT) or tape & box (TB) and contains 1000 pieces. The product has an ECCN of EAR99 and an HTSUS of 8533.21.0090. The product is REACH unaffected and has no MSL level.
