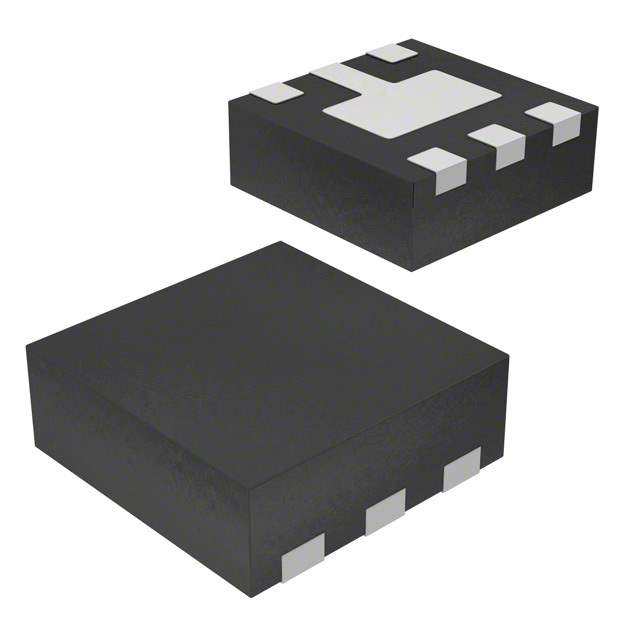

GMF05C-HSF-GS08 Real Image
Same model may have multiple batches, images only for reference.

GMF05C-HSF-GS08

Part No GMF05C-HSF-GS08
Manufacturer Vishay
Catalog TVS - Diodes
Description TVS DIODE 5VWM 12.5VC LLP75-6L / 12.5V Clamp 12A (8/20µs) Ipp Tvs Diode Surface Mount LLP75-6L
Datasheet
GMF05C-HSF-GS08 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Vishay General Semiconductor - Diodes Division
Package Tape & Reel
Type Zener
Unidirectional Channels 5
Voltage - Reverse Standoff (Typ) 5V (Min)
Voltage - Breakdown (Min) 6V
Voltage - Clamping (Max) @ Ipp 12.5V
Current - Peak Pulse (10/1000µs) 12A (8/20µs)
Power - Peak Pulse 200W
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency 126pF @ 1MHz
Temperature Range - Operating -55°C ~ 125°C (TJ)
Mounting SMD (SMT)
Package / Case 6-UFDFN Exposed Pad
Supplier Device Package LLP75-6L
Base Product Number GMF05
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Names GMF05C-HSF-GS08CT,GMF05C-HSF-GS08TR,GMF05C-HSF-GS08DKR,GMF05CHSFGS08
Standard Package 3,000
Win Source Part Number 1188559-GMF05C-HSF-GS08
Ultra Librarian 3D Model Ultra Librarian GMF05C-HSF-GS08 CAD Model

Description

The Vishay 1188559-GMF05C-HSF-GS08 is a high-performance zener diode designed for general-purpose applications.

  • Mounting Type: Surface Mount
  • Packaging: Tape and Reel
  • Channel: Unidirectional
  • Reverse Standoff Voltage: 5V
  • Clamping Voltage: 12.5V
  • Power Peak Pulse: 200W
  • Capacitance: 126pF @ 1MHz
  • Peak Pulse Current: 12A @ 8/20μs
