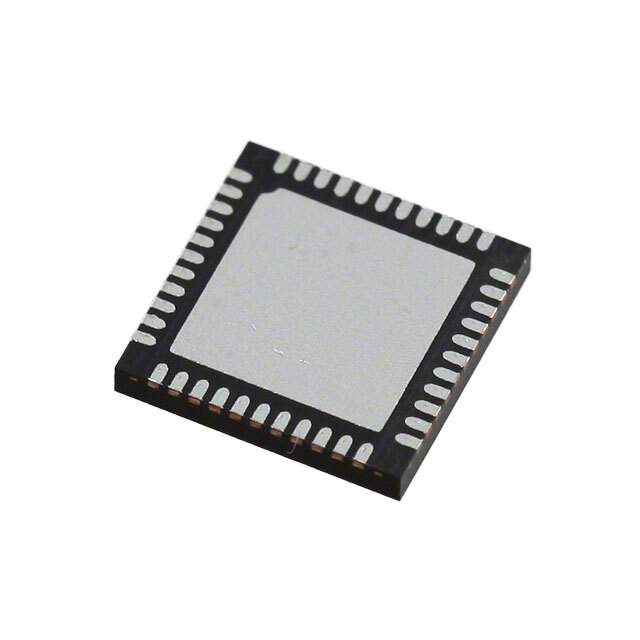

AMIS30421C4211RG

Part No AMIS30421C4211RG
Manufacturer ON Semiconductor
Catalog PMIC - Motor Drivers, Controllers
Description Micro-Stepping Stepper Motor Bridge Controller | IC MTR DRVR BIPOLAR 3-3.6V 44QFN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer ON Semiconductor
Packaging Tape and Reel
Motor Type - Stepper Bipolar
Function Controller - Commutation, Direction Management
Output Configuration Pre-Driver - Half Bridge (4)
Interface SPI
Step Resolution 1 ~ 1/64
Applications General Purpose
Supply Voltage (V) 3V ~ 3.6V
Temperature Range - Operating -40°C ~ 125°C
Mounting Style SMD
Manufacturer Package 44-VFQFN Exposed Pad
Supplier Device Package 44-QFN (7x7)
Family Part Number AMIS-30421
Manufacturer Pack Quantity 2,500
MSL Level 3 (168 Hours)
Win Source Part Number 1144449-AMIS30421C4211RG
Manufacturer Homepage www.onsemi.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian AMIS30421C4211RG CAD Model

Description

The AMIS30421C4211RG from ON Semiconductor is a state-of-the-art integrated stepper motor driver that offers a compact and efficient solution for controlling stepper motors in a wide range of applications. This micro-stepping driver is designed to drive a bipolar stepper motor in full-, half-, quarter-, and sixteenth-step modes, providing a versatile platform for precise motor control.

Key Features

  • Integrated Controller: The device integrates a controller and driver, reducing the complexity of design and the number of external components required.
  • High Voltage Capability: It can operate with a supply voltage up to 50V, making it suitable for a broad range of stepper motors.
  • Current Control: The AMIS30421C4211RG has programmable peak current control, which ensures efficient motor operation and reduced power dissipation.
  • Micro-stepping: With micro-stepping capabilities, this driver enables smooth and precise motor movement, which is essential for applications requiring fine positioning.
  • Thermal Protection: Built-in thermal protection features safeguard the device from overheating, enhancing its reliability and longevity.
  • Diagnostics: The driver includes diagnostic features that provide feedback on the status of the motor and the driver, which is critical for fault detection and system maintenance.

Applications

The versatility of the AMIS30421C4211RG makes it an ideal choice for a variety of applications, including but not limited to:

  • Office automation machines
  • Medical equipment
  • Industrial automation
  • Robotics
  • Precision instrumentation

Package and Quality

The device comes in a compact 32-pin QFN package, which is suitable for space-constrained applications. ON Semiconductor's commitment to quality ensures that the AMIS30421C4211RG meets the highest standards of performance and reliability, making it a trusted choice for your stepper motor driving needs.
