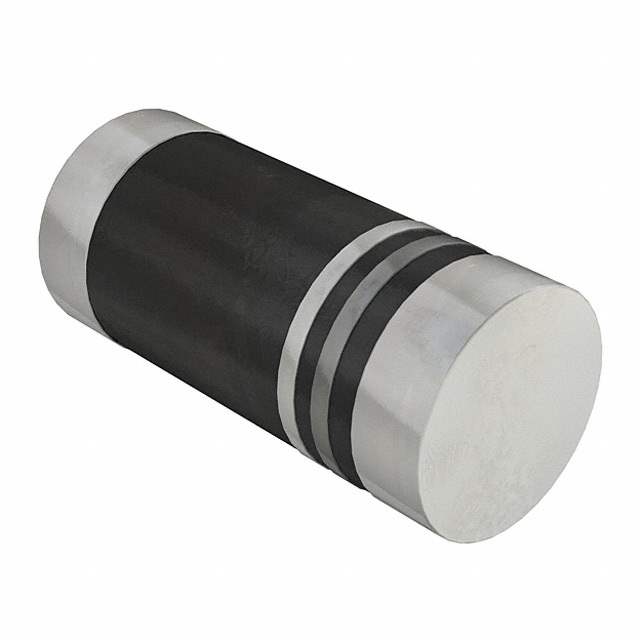

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Reel - TR
Status Active
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 50V
Current - Average Rectified (Io) 500mA
Voltage - Forward (Vf) (Max) @ If 1.2V @ 500mA
Speed(Frequency) Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) 1.5μs
Current - Reverse Leakage @ Vr 5μA @ 50V
Capacitance @ Vr, F 4pF @ 4V, 1MHz
Mounting SMD (SMT)
Case / Package DO-213AA (GL34)
Operating Temperature - Junction -65°C to 175°C
Win Source Part Number 001370-GL34A-E3/98
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian GL34A-E3/98 CAD Model

Description

The Vishay 001370-GL34A-E3/98 is a standard diode.

  • Maximum DC Reverse Voltage: 50V
  • Average Rectified Current: 500mA
  • Forward Voltage: 1.2V @ 500mA
  • Reverse Recovery Time: 1.5μs
  • Current Leakage: 5μA @ Maximum Reverse Voltage
  • Package: DO-213AA (GL34)
  • Mounting Type: SMD (SMT)
  • Capacitance: 4pF @ 4V, 1MHz
  • Operating Temperature Range: -65°C to 175°C

This diode is ideal for use in various electronic circuits and is a popular choice among design engineers.
