Same model may have multiple batches, images only for reference.

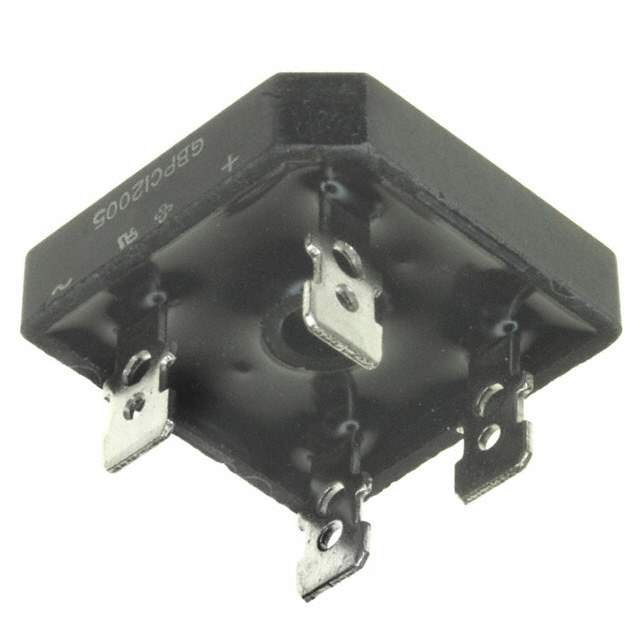

GBPC12005-E4/51 Real Image
Same model may have multiple batches, images only for reference.

GBPC12005-E4/51

Part No GBPC12005-E4/51
Manufacturer Vishay
Catalog Bridge Rectifiers
Description RECTIFIER BRIDGE 12A 50V GBPC / Diode Rectifier Bridge Single 50V 12A 4-Pin Case GBPC Bulk
Datasheet
GBPC12005-E4/51 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Bulk
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 50V
Current - Average Rectified (Io) 12A
Voltage - Forward (Vf) (Maximum) @ If 1.1V @ 6A
Current - Reverse Leakage @ Vr 5μA @ 50V
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Style Through Hole
Package 4-Square, GBPC-W
Manufacturer Package GBPC-W
Win Source Part Number 774996-GBPC12005-E4/51
Popularity Medium
Supply and Demand Status Limited
Family Name GBPC12005
Introduction Date January 05, 1990
ECCN EAR99
Country of Origin China
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian GBPC12005-E4/51 CAD Model

Description

The Vishay Semiconductor Diodes Division GBPC12005 is a single-phase diode from Vishay Semiconductor Diodes Division.

  • Family: GBPC12005
  • Supply and Demand Status: Limited
  • Introduction Date: January 05, 1990
  • ECCN: EAR99
  • Estimated EOL Date: 2031
  • Manufactured in: China
  • Voltage Rating DC: 50V
  • Current - Average Rectified (Io): 12A
