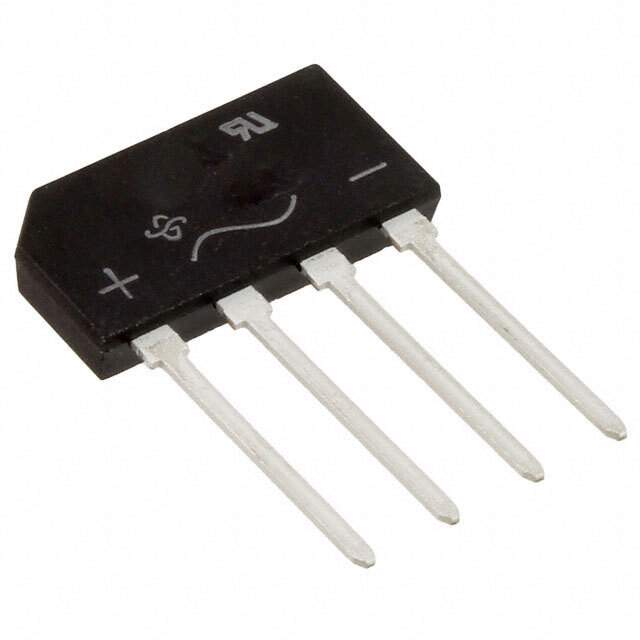

G2SBA60-E3/45 Real Image
Same model may have multiple batches, images only for reference.

G2SBA60-E3/45

Part No G2SBA60-E3/45
Manufacturer Vishay
Catalog Bridge Rectifiers
Description BRIDGE RECT 1PHASE 600V 1.5A GBL / Bridge Rectifier Single Phase Standard 600 V Through Hole GBL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Bridge Rectifiers
Mfr Vishay General Semiconductor - Diodes Division
Package Tube
Product Status Obsolete
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 600 V
Current - Average Rectified (Io) 1.5 A
Voltage - Forward (Vf) (Max) @ If 1 V @ 750 mA
Current - Reverse Leakage @ Vr 5 µA @ 600 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case 4-SIP, GBL
Supplier Device Package GBL
Base Product Number G2SBA60
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Standard Package 2,000
Win Source Part Number 960570-G2SBA60-E3/45
Ultra Librarian 3D Model Ultra Librarian G2SBA60-E3/45 CAD Model

Description

The Vishay G2SBA60-E3/45 is a single phase diode type bridge rectifier electronic component with a current - average rectified (Io) of 1.5 A and voltage - forward (Vf) (Max) @ If of 1 V @ 750 mA.

  • Current - Reverse Leakage @ Vr: 5 µA @ 600 V
  • Voltage - Peak Reverse (Max): 600 V
  • Mounting Type: Through hole
  • Package / Case: 4-SIP, GBL
  • Supplier Device Package: GBL
  • Temperature Range - Operating: -55°C ~ 150°C (TJ)
  • Type: Discrete semiconductor products
  • Status: Obsolete
