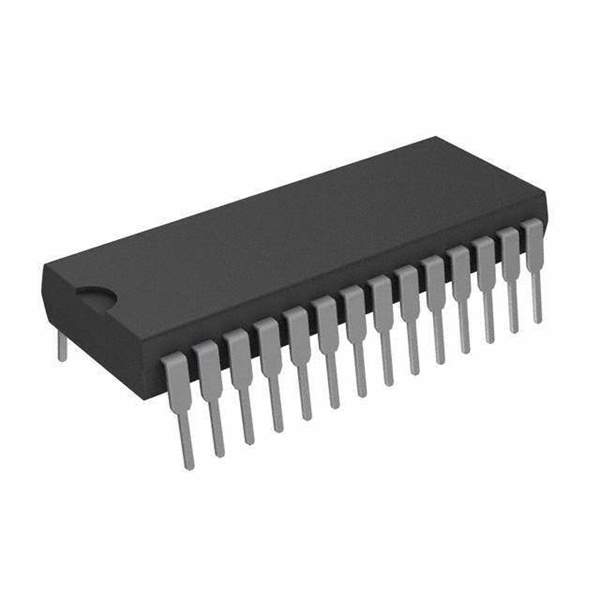

DG535DJ-E3 Real Image
Same model may have multiple batches, images only for reference.

DG535DJ-E3

Part No DG535DJ-E3
Manufacturer Vishay
Catalog Interface - Analog Switches - Special Purpose
Description IC AMP/VIDEO/MUX LP 2CH 28DIP
Datasheet
DG535DJ-E3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Vishay
Packaging Tube/Rail
Status Obsolete(EOL)
Applications Video
Number of Channels 1
Max On Resistance 90 Ohm
Single Supply Voltage (V+) 10 V to 16.5 V
-3db Bandwidth 500MHz
Features T-Switch Configuration
Temperature Range - Operating -40°C to 85°C (TA)
Case / Package 28-PDIP
Win Source Part Number 139150-DG535DJ-E3
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian DG535DJ-E3 CAD Model
