Same model may have multiple batches, images only for reference.

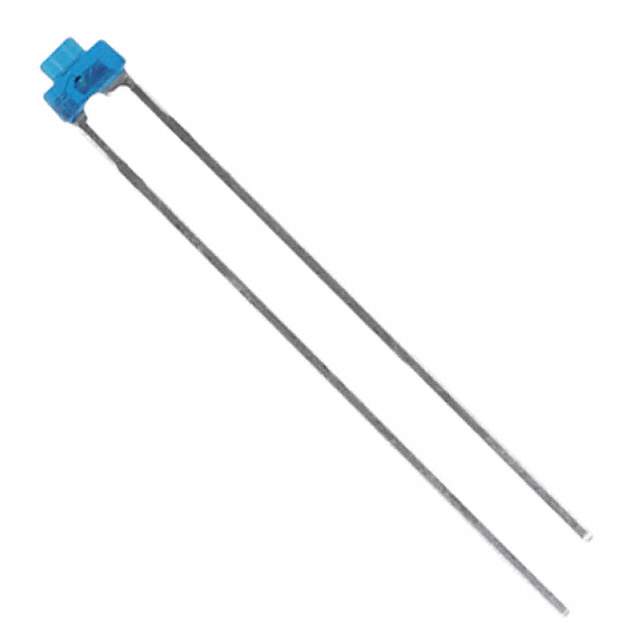

CQY36N Real Image
Same model may have multiple batches, images only for reference.

CQY36N

Part No CQY36N
Manufacturer Vishay
Catalog Infrared, UV, Visible Emitters
Description EMITTER IR 950NM 100MA RADIAL
Datasheet
CQY36N Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Vishay
Packaging Bulk
Status Active
Type Infrared (IR)
Continuous forward current- Max 100mA
Radiant Intensity (Ie) Min @ If 0.7mW/sr @ 50mA
Wavelength 950nm
Forward Voltage 1.3V
Viewing Angle 110°
Orientation Top View
Temperature Range - Operating -25°C to 85°C (TA)
Mounting Through Hole
Dimension Radial, 1.8mm (T-3/4)
Win Source Part Number 1030177-CQY36N
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CQY36N CAD Model

Description

The Vishay infrared (IR) component is a high-quality electronic component that is designed to provide reliable and efficient performance.

  • Orientation: top view orientation
  • Mounting: through a hole
  • Forward voltage: 1.3V
  • Viewing angle: 110 degrees
  • Use: use in optoelectronics
  • Radiant intensity (Ie): 0.7mW/sr @ 50mA
  • Temperature range: -25 degrees Celsius to 85 degrees Celsius (TA)
  • Continuous forward current: up to 100mA
  • Supply and demand status: balanced
