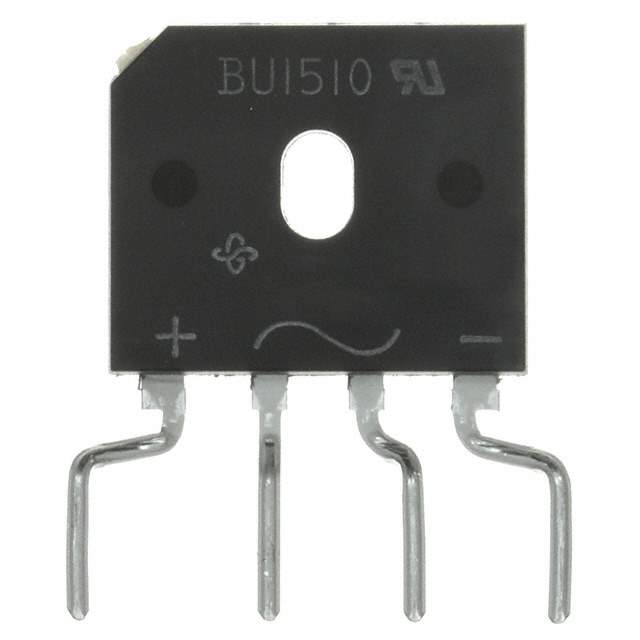

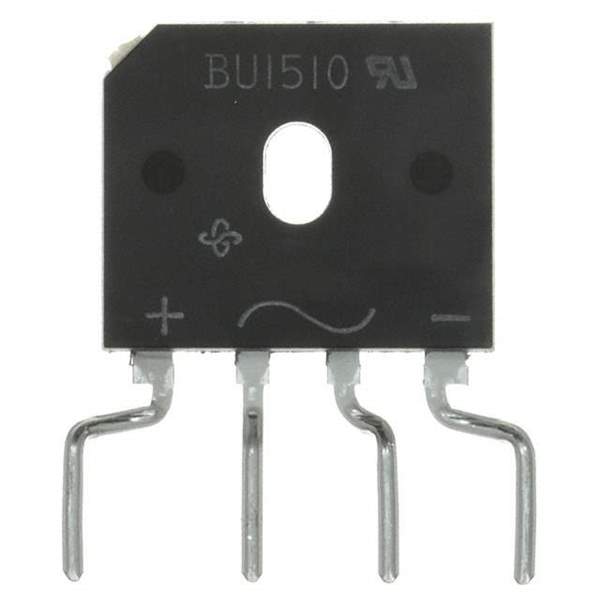

BU15085S-E3/45 Real Image
Same model may have multiple batches, images only for reference.

BU15085S-E3/45

Part No BU15085S-E3/45
Manufacturer Vishay
Catalog Bridge Rectifiers
Description BRIDGE RECT 1P 800V 3.4A BU-5S / Bridge Rectifier Single Phase Standard 800 V Through Hole isoCINK+™ BU-5S
Datasheet
BU15085S-E3/45 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Bridge Rectifiers
Mfr Vishay General Semiconductor - Diodes Division
Package Tube
Product Status Obsolete
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 800 V
Current - Average Rectified (Io) 3.4 A
Voltage - Forward (Vf) (Max) @ If 1.05 V @ 7.5 A
Current - Reverse Leakage @ Vr 5 µA @ 800 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case 4-SIP, BU-5S
Supplier Device Package isoCINK+™ BU-5S
Base Product Number BU15085
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Standard Package 800
Win Source Part Number 1122707-BU15085S-E3/45
Ultra Librarian 3D Model Ultra Librarian BU15085S-E3/45 CAD Model

Description

The Vishay General Semiconductor - Diodes Division BU15085S-E3/45 is a high-quality bridge rectifier designed for use in a wide range of electronic devices.

  • Current Rating: 3.4 A
  • Voltage Rating: 800 V
  • Mounting Type: Through Hole
  • Package: Tube
  • REACH: Unaffected
  • ECCN: EAR99
