Same model may have multiple batches, images only for reference.

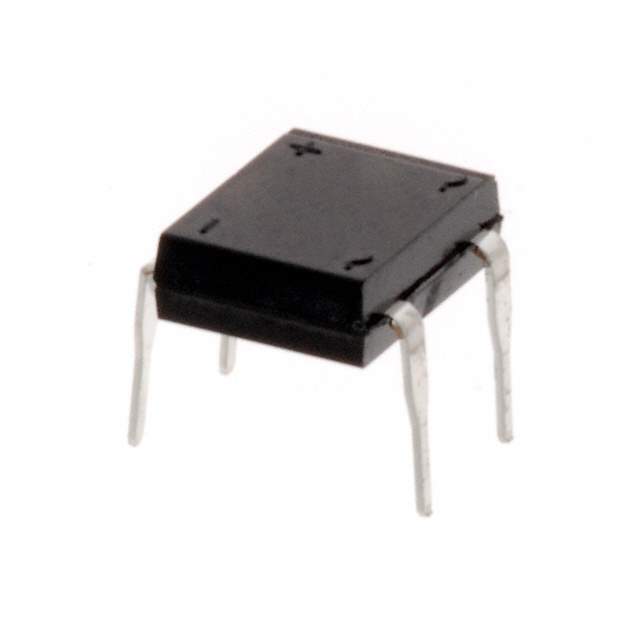

DF10MA-E3/45 Real Image
Same model may have multiple batches, images only for reference.

DF10MA-E3/45

Part No DF10MA-E3/45
Manufacturer Vishay
Catalog Bridge Rectifiers
Description BRIDGE RECT 1PHASE 1KV 1A DFM / Miniature Glass Passivated Single-Phase Bridge Rectifiers
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Vishay Semiconductor Diodes Division
Packaging Tube
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 1kV
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Maximum) at If 1.1V at 1A
Current - Reverse Leakage at Vr 5μA at 1000V
Temperature Range - Operating -55°C ~ 150°C
Mounting Style Through Hole
Manufacturer Package 4-EDIP
Supplier Device Package DFM
Part Number Series DF10
Manufacturer Pack Quantity 5,000
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Sufficient
Win Source Part Number 800688-DF10MA-E3/45
Ultra Librarian 3D Model Ultra Librarian DF10MA-E3/45 CAD Model

Description

The DF10MA-E3/45 is a single-phase diode manufactured by Vishay Semiconductor Diodes Division.

  • Package: Through-Hole
  • Maximum Peak Reverse Voltage: 1kV
  • Applications: Rectification and Freewheeling in Switching Power Supplies and Power Conversion Circuits
  • Average Rectified Current: 1A
  • Reverse Leakage Current: 5μA @ 1000V
  • Series: DF10
  • Popularity: High
  • Supply and Demand Status: Sufficient
