Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Reel - TR
Status Active
Diode Type Three Phase
Technology Standard
Voltage - Peak Reverse (Max) 200V
Current - Average Rectified (Io) 500mA
Voltage - Forward (Vf) (Max) @ If 1.25V @ 400mA
Current - Reverse Leakage @ Vr 5μA @ 200V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package TO-269AA (MBS)
Win Source Part Number 1092430-RMB2S-E3/80
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian RMB2S-E3/80 CAD Model

Description

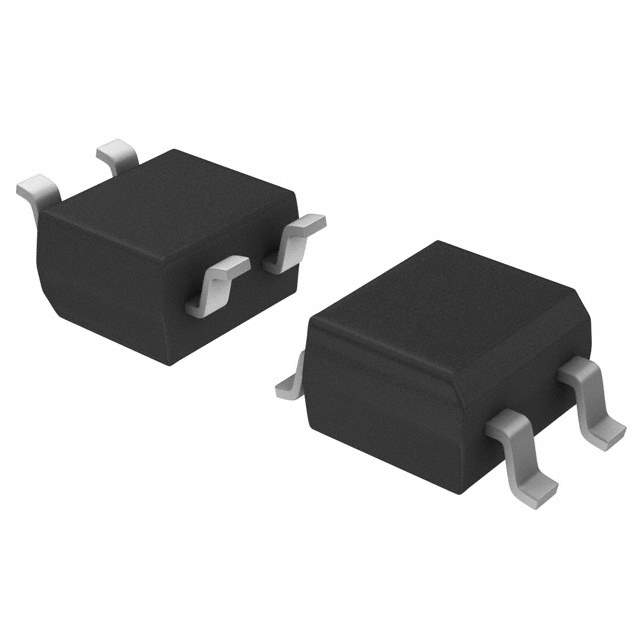

The RMB2S-E3/80 is a three-phase standard technology diode from Vishay that has an average rectified current of 500mA and a voltage forward of 1.25V at 400mA.

  • Average Rectified Current: 500mA
  • Voltage Forward: 1.25V @ 400mA
  • Reverse Leakage Current: 5μA @ 200V
  • Peak Reverse Voltage: 200V
  • Package: TO-269AA (MBS)
  • Supply and Demand: balanced
  • Popularity: Medium
