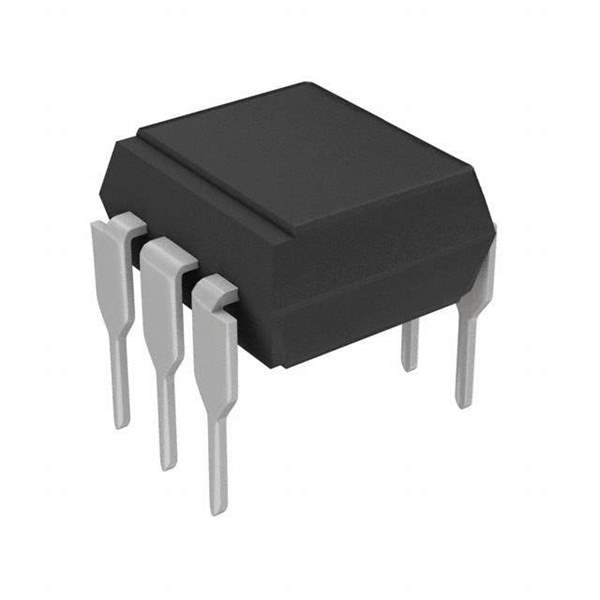

BRT13-H Real Image
Same model may have multiple batches, images only for reference.

BRT13-H

Part No BRT13-H
Manufacturer Vishay
Catalog Optoisolators - Triac, SCR Output
Description PHOTOCOUPLER TRIAC 800V 6DIP / Optocoupler Triac AC-OUT 1-CH 800V 6-Pin PDIP
Datasheet
BRT13-H Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Vishay Semiconductor Opto Division
Packaging Tube
Part Status Obsolete(EOL)
Output Type Triac
Zero Crossing Circuit No
Number of Channels 1
Voltage - Isolation 5300Vrms
Voltage - Off State 800V
Static dV/dt (Minimum) 10kV/μs
Current - LED Trigger (Ift) (Maximum) 2mA
Current - On State (It (RMS)) (Maximum) 300mA
Current - Hold (Ih) 500μA
Voltage - Forward (Vf) (Typ) 1.1V
Current - DC Forward (If) (Maximum) 20mA
Operating Temperature Range -40°C ~ 100°C
Mounting Style Through Hole
Package 6-DIP (0.300", 7.62mm)
Manufacturer Package 6-DIP
Approvals CQC, UL
Win Source Part Number 770396-BRT13-H
Popularity Medium
Supply and Demand Status Balance
Family Name BRT13
Introduction Date May 20, 1997
ECCN EAR99
Country of Origin China
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian BRT13-H CAD Model

Description

The BRT13-H is a triac output optocoupler designed for isolator applications.

  • Package: 6-DIP (0.300", 7.62mm)
  • Mounting Type: Through-hole
  • Operating Temperature: -40°C to 100°C
  • Approvals: CQC and UL
  • Forward Voltage: 1.1V
  • Off-State Voltage: 800V
  • Channels: Single
  • Voltage Isolation: 5300Vrms
  • Status: Obsolete (EOL)
  • Family Name: BRT13
  • Supply and Demand Status: Balanced
  • Current On-state (It (RMS)) (maximum): 300mA
  • Static dV/dt (minimum): 10kV/μs
  • Current LED trigger (Ift) (maximum): 2mA
  • Current DC forward (If) (maximum): 20mA
  • Alternative Parts: FOD4218T, FOD4208T, FOD4208, FOD4218
  • Introduction Date: May 20, 1997
  • ECCN: EAR99
  • Country of Origin: China
  • Estimated EOL Date: 2025
