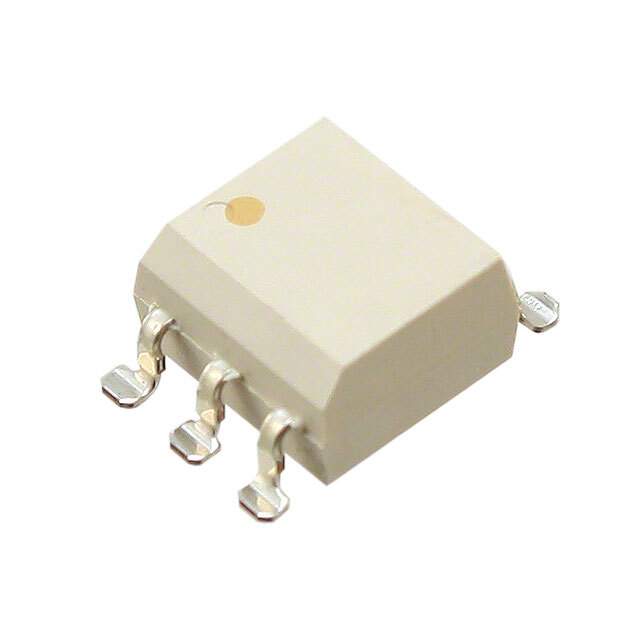

TLP3042SCF Real Image
Same model may have multiple batches, images only for reference.

TLP3042SCF

Part No TLP3042SCF
Manufacturer Toshiba Semiconductor and Storage
Catalog Optoisolators - Triac, SCR Output
Description OPTOISOLATOR 5KV TRIAC 6DIP 5L
Datasheet
TLP3042SCF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Toshiba Semiconductor and Storage
Packaging Tube/Rail
Status Active
Output Type Triac
Zero Crossing Circuit Yes
Number of Channels 1
Isolation Voltage 5000Vrms
Voltage - Off State 400V
Static dV/dt (Min) 200V/μs
Current - LED Trigger (Ift) (Max) 10mA
Current - On State (It (RMS)) (Max) 100mA
Current - Hold (Ih) 600μA (Typ)
Forward Voltage 1.15V
Continuous forward current- Max 50mA
Temperature Range - Operating -40°C to 100°C
Mounting Through Hole
Case / Package 6-DIP (Cut), 5 Lead
Approvals BSI, SEMKO, UR
Win Source Part Number 1108908-TLP3042SCF
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian TLP3042SCF CAD Model

Description

The Toshiba Semiconductor and Storage TLP3042SCF is a through-hole mounting type triac output optocoupler that is suitable for use in electronic circuits that require isolation functions.

  • Forward Voltage: 1.15V
  • Off-State Voltage: 400V
  • Current On-State (It (RMS)) (Max): 100mA
  • Number of Channels: 1
  • Isolation Voltage: 5000Vrms
  • Current Hold (Ih): 600μA (Typ)
  • Zero-Crossing Circuit: Yes
  • Static dV/dt (Min): 200V/μs
  • Current LED Trigger (Ift) (Max): 10mA
  • Turn-On Time: Not Specified
  • Package: 6-DIP (Cut), 5 Lead
  • Category: Isolators
  • Status: Active
  • Popularity: Medium
