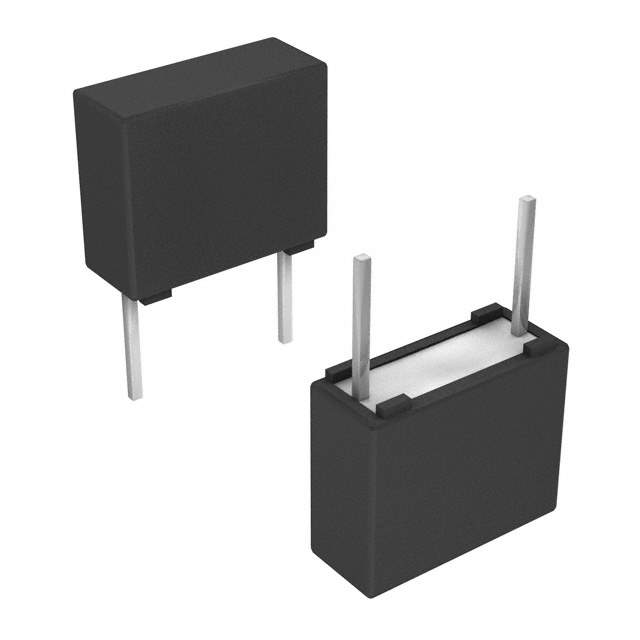

Products specifications

Categories Capacitors
Manufacturer Vishay
Packaging AMMO PACKAGE
Status Active
Capacitance 5600pF
Tolerance ±2%
Voltage Rating - AC 125V
Voltage Rating - DC 400V
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -55°C to 85°C
Mounting Through Hole
Dimension 0.283" L x 0.177" W (7.20mm x 4.50mm)
Height - Seated (Max) 0.354" (9.00mm)
Termination PC Pins
Lead Spacing 0.197" (5.00mm)
Applications High Frequency, Switching
Win Source Part Number 201112-BFC241915602
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian BFC241915602 CAD Model

Description

The BFC241915602 is a versatile capacitor designed for a vast array of electronic applications. It ensures outstanding performance and longevity, catering to both consumer and industrial demands.

Applications

  • Motor drives
  • Power inverters
  • Renewable energy systems
  • Automotive electronics

Features and Benefits

  • Robust construction
  • High capacitance stability
  • Excellent temperature coefficient
  • Compact and lightweight design
