Products specifications

Categories Potentiometers, Variable Resistors
Manufacturer Copal Electronics Inc.
Packaging AMMO PACKAGE
Status Active
Resistance (Ohms) 1k
Power (Watts) 0.5W, 1/2W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 1
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting Through Hole
Termination Style PC Pins
Dimension Square - 0.276" x 0.276" Face x 0.228" L (7.00mm x 7.00mm x 5.80mm)
Win Source Part Number 1040326-FT63ETV102
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian FT63ETV102 CAD Model

Description

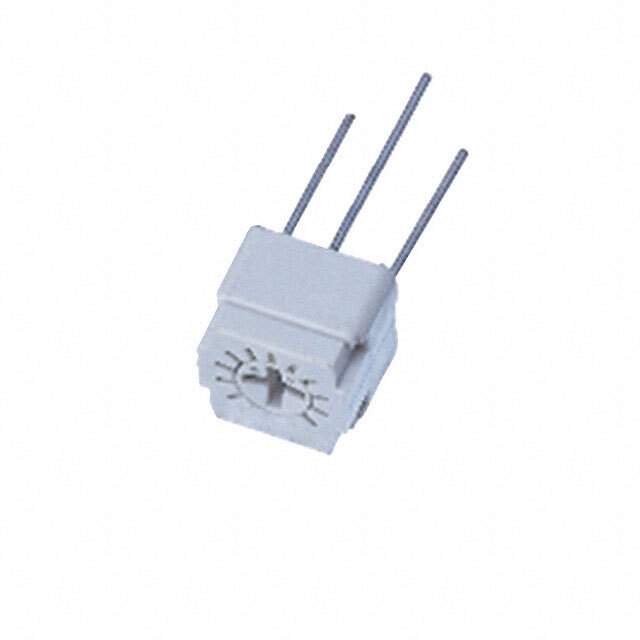

The FT63ETV102 is a 1kΩ through-hole trimmer potentiometer manufactured by Copal Electronics Inc. These components are used to adjust or fine-tune circuits, serving as adjustable voltage dividers.

Applications

  • Calibration of electronic circuits
  • Adjusting audio levels in amplifiers
  • Setting voltage references in power supplies
  • Fine-tuning sensor outputs
  • Controlling motor speeds

Features

  • Resistance value: 1kΩ
  • Through-hole mounting
  • Top adjust
  • Carbon element
  • Compact size

Benefits

  • Enables precise adjustments to circuit parameters.
  • Provides a cost-effective solution for calibration.
  • Easy to install in through-hole circuit boards.
  • Allows for convenient adjustments from the top of the component.
  • Suitable for a wide range of applications due to its versatility.

Additional Details

The FT63ETV102 trimmer potentiometer features a carbon composition element, providing a stable and reliable resistance value. The through-hole mounting style ensures secure attachment to circuit boards. The top adjustment allows for easy access to the adjustment screw. The potentiometer is designed for general-purpose applications and offers a good balance of performance and cost. Its compact size makes it suitable for use in space-constrained designs. The FT63 series of trimmer potentiometers from Copal Electronics Inc. is known for its reliability and performance.
