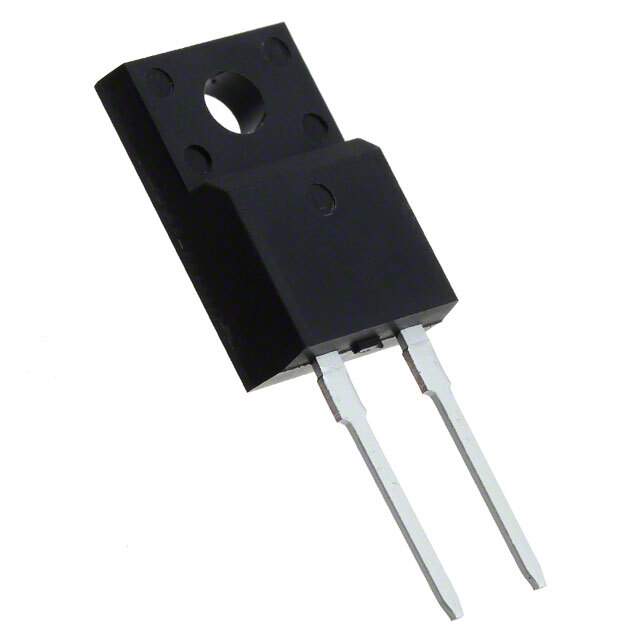

SCS220AMC

Part No SCS220AMC
Manufacturer Rohm Semiconductor
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 650V 20A TO220FM / Rectifier Diode Schottky 650V 20A 2-Pin(2+Tab) TO-220FM Tube
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Rohm Semiconductor
Packaging Tube
Diode Type Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Maximum) 650V
Current - Average Rectified (Io) 20A
Voltage - Forward (Vf) (Maximum) @ If 1.55V @ 20A
Speed No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr) 0ns
Current - Reverse Leakage @ Vr 400μA @ 600V
Capacitance @ Vr, F 730pF @ 1V, 1MHz
Mounting Style Through Hole
Package TO-220-2 Full Pack
Manufacturer Package TO-220FM
Operating Temperature - Junction 175°C (Maximum)
Win Source Part Number 794013-SCS220AMC
Popularity Medium
Supply and Demand Status Limited
Family Name SCS220AMC
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date 2022
Ultra Librarian 3D Model Ultra Librarian SCS220AMC CAD Model

Description

The SCS220AMC from Rohm Semiconductor is a silicon carbide Schottky diode with a current rating of 20A.

  • Maximum Reverse Voltage: 650V
  • Package: TO-220-2 full pack
  • Forward Voltage: 1.55V @ 20A
  • Reverse Recovery Time: 0ns
  • Reverse Leakage Current: 400μA @ 600V
  • Capacitance: 730pF @ 1V, 1MHz
  • Compliance: Halogen-Free
  • Supply and Demand Status: Limited
  • Cross-Reference: TRS16A65C, FFSPF2065A, CDBJFSC8650-G, CDBJFSC10650-G
