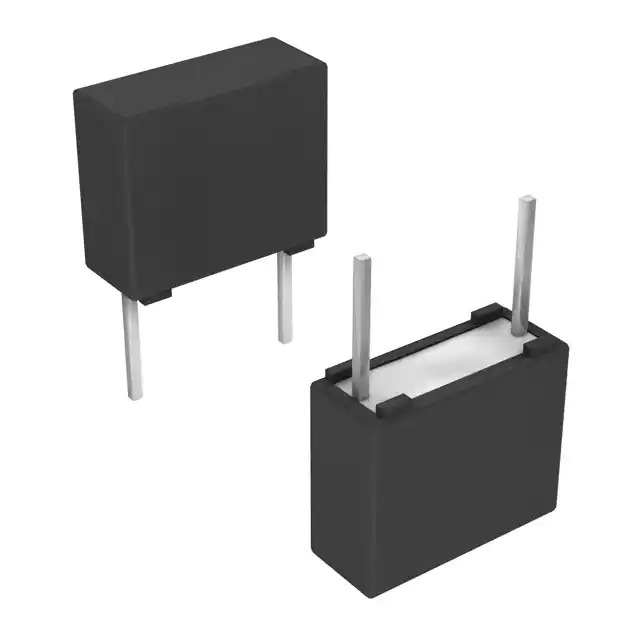

Products specifications

Category Capacitors - Film Capacitors
Mfr Vishay Beyschlag/Draloric/BC Components
Series MKT370
Package Bulk
Product Status Active
Capacitance 2200 pF
Tolerance ±10%
Voltage Rating - AC 220V
Voltage Rating - DC 400V
Dielectric Material Polyester, Metallized
Temperature Range - Operating -55°C ~ 105°C
Mounting Type Through Hole
Package / Case Radial
Size / Dimension 0.283" L x 0.098" W (7.20mm x 2.50mm)
Height - Seated (Max) 0.256" (6.50mm)
Termination PC Pins
Lead Spacing 0.200" (5.08mm)
Applications Automotive
Ratings AEC-Q200
Features Long Life
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0010
Win Source Part Number 1360057-BFC237051222
Ultra Librarian 3D Model Ultra Librarian BFC237051222 CAD Model

Description

The Vishay Beyschlag/Draloric/BC Components MKT370 series is a radial film capacitor with a capacitance of 2200pF and a voltage rating of 400V (AC) and 220V (DC).

  • Capacitance: 2200pF
  • Voltage Rating: 400V (AC) / 220V (DC)
  • Application: General-Purpose
  • Application: Automotive Systems
  • Package/Case: Radial
  • Lead Spacing: 0.200" (5.08mm)
  • Tolerance: ±10%
  • REACH: Not Affected
  • Status: Active
  • Life: Long
  • Dimensions: 0.283" L x 0.098" W (7.20mm x 2.50mm)
  • Seated Height: 0.256" (6.50mm)
  • Mounting Type: Through-Hole
