Products specifications Report Issue?

Category Development Boards, Kits, Programmers>Evaluation Boards - Embedded - MCU, DSP
Mfr STMicroelectronics
Series STM32F4
Package Bulk
Board Type Evaluation Platform
Type MCU 32-Bit
Core Processor ARM® Cortex®-M4
Platform Nucleo-144
Utilized IC / Part STM32F446ZE, mbed-Enabled Development
Mounting Type Fixed
Contents Board(s)
Interconnect System Arduino R3 Shield, ST Morpho, ST Zio
Suggested Programming Environment GNU GCC, IAR EW, Keil MDK, Mbed-Enabled
Base Product Number NUCLEO
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8471.50.0150
Other Names 497-16281
Standard Package 1
Win Source Part Number 1232435-NUCLEO-F446ZE
Ultra Librarian 3D Model Ultra Librarian NUCLEO-F446ZE CAD Model

Description

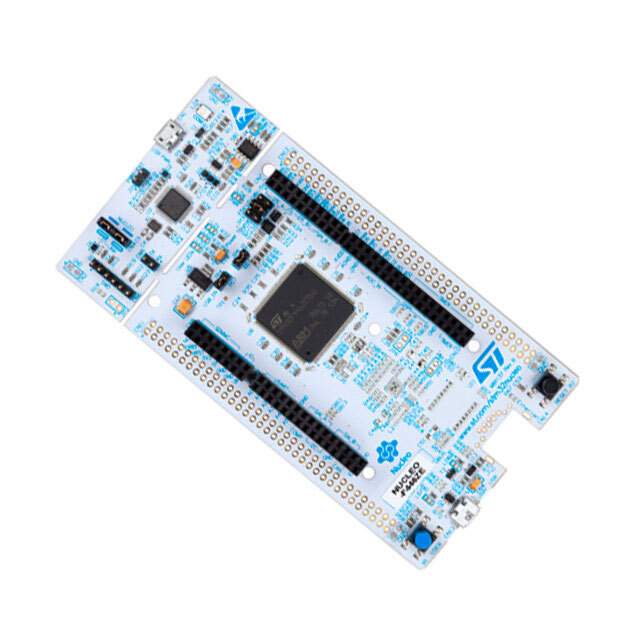

STMicroelectronics NUCLEO-F446ZE Development Board

The NUCLEO-F446ZE is a highly versatile development board from STMicroelectronics, designed to support the STM32F446ZE microcontroller. This powerful platform is perfect for hobbyists, educators, and professional developers alike, offering a flexible way to build and test new concepts and applications in various domains including industrial control, consumer electronics, and Internet of Things (IoT).

At the heart of the NUCLEO-F446ZE board is the STM32F446ZE microcontroller, which is based on the high-performance ARM Cortex-M4 32-bit RISC core operating at a frequency of up to 180 MHz. The microcontroller incorporates ST's advanced ART Accelerator™ as well as an extensive range of enhanced I/Os and peripherals. It is also equipped with a Floating Point Unit (FPU), which supports all ARM single-precision data-processing instructions and data types.

The development board provides an affordable and flexible way for users to try out new ideas and build prototypes with the STM32F446ZE microcontroller, choosing from the various combinations of performance, power consumption, and features. The NUCLEO-F446ZE does not require any separate probe as it integrates the ST-LINK/V2-1 debugger and programmer.

The NUCLEO-F446ZE is highly compatible with a wide range of development environments including IAR, Keil, and GCC-based IDEs. It also supports the ARM® mbed™ IoT platform which provides a plethora of existing libraries and easy integration of additional sensors or actuators. The board offers several power supply options: through the USB connector, external sources, or via the integrated ST-LINK.

Connectivity is a strong suit for the NUCLEO-F446ZE, with the board providing support for Arduino Uno V3 connectivity as well as ST morpho extension pin headers for full access to all STM32 I/Os. This allows the board to be easily expanded with a wide range of specialized add-on boards, facilitating rapid prototyping and development of complex applications.

With its rich set of features, the NUCLEO-F446ZE development board is an ideal choice for those looking to explore the capabilities of the STM32F446ZE microcontroller and develop advanced projects in a user-friendly and cost-effective manner.
