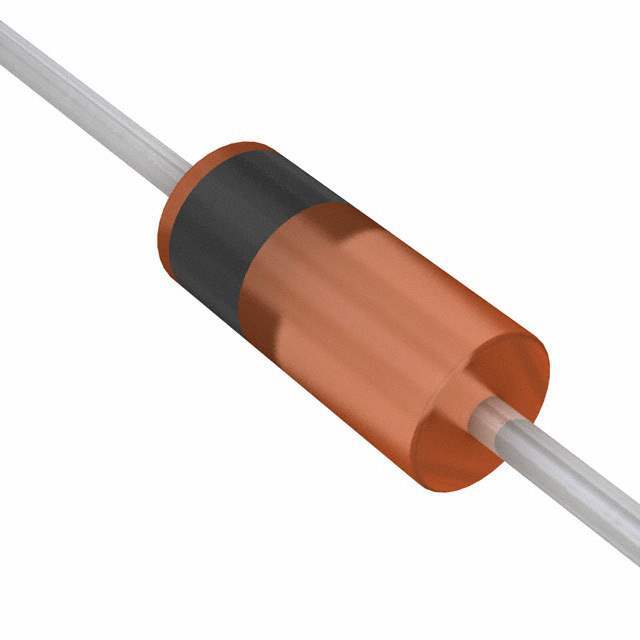

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number WS1307415-BA282-TAP
Category Discrete Semiconductor Products Diodes RF Diodes
Manufacturer Vishay General Semiconductor - Diodes Division
Packaging Tape & Box (TB)
Part Status Obsolete
Diode Type Standard - Single
Voltage - Peak Reverse (Max) 35V
Current - Max 100 mA
Capacitance @ Vr, F 1.25pF @ 3V, 100MHz
Resistance @ If, F 500mOhm @ 10mA, 200MHz
Operating Temperature 125°C (TJ)
Ultra Librarian 3D Model Ultra Librarian BA282-TAP CAD Model

Description

  • Integrated protection ring against static discharge
  • Low capacitance
  • Low leakage current
  • Low forward voltage drop
  • Very low switching time
