Maxim Integrated's MAX1912EUB: A High-Efficiency, Low-Voltage, Step-Down DC-DC Converter

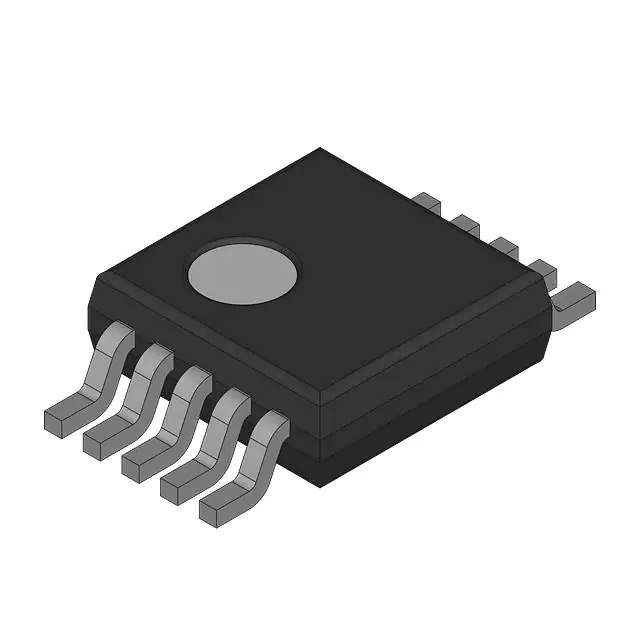

The MAX1912EUB from Maxim Integrated is a highly efficient and compact step-down DC-DC converter designed to deliver a fixed output voltage from a higher input voltage, making it an ideal solution for battery-powered devices and low-voltage power systems. This versatile component is housed in a small 10-pin µMAX package, which is well-suited for space-constrained applications.
With an input voltage range of 2.6V to 5.5V, the MAX1912EUB is capable of providing an output voltage as low as 1.25V, which can be preset to 1.8V, 2.5V, or 3.3V, or adjusted down to 0.8V with an external resistor divider. This flexibility allows designers to use the device in a wide range of applications, from powering microprocessors and DSPs to supplying energy for RF circuits and portable devices.
The MAX1912EUB employs a current-mode, pulse-width modulation (PWM) control scheme which enhances stability and response to varying loads. It also boasts a high switching frequency of up to 1MHz, which allows for the use of smaller, less expensive inductors and capacitors, further reducing the overall footprint and cost of the power supply design.
One of the key features of the MAX1912EUB is its high efficiency, which can reach up to 96%. This is achieved through the use of low on-resistance (R<sub>DS(ON)) internal switches, which reduce power loss during switching. The device also includes a low quiescent current, making it suitable for battery-powered applications where power conservation is critical.
Additional features include internal digital soft-start to reduce inrush current during startup, thermal shutdown for protection against excessive temperatures, and a power-good (PG) output to provide system feedback on the status of the voltage regulation.
In summary, the MAX1912EUB from Maxim Integrated is a versatile, high-efficiency step-down converter that is ideal for a variety of low-voltage applications. Its small size, adjustable output voltage, and high-frequency operation make it a valuable component for designers looking to optimize their power management solutions.
