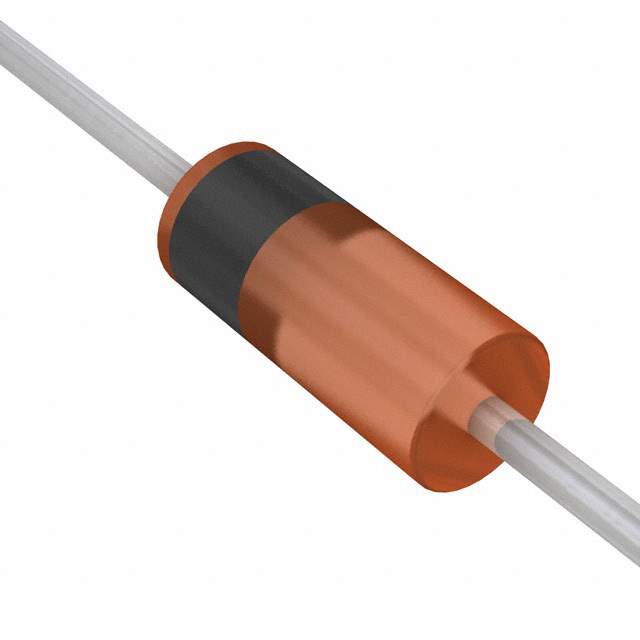

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - RF
Mfr Vishay General Semiconductor - Diodes Division
Package Tape & Reel (TR)
Product Status Obsolete
Diode Type Standard - Single
Voltage - Peak Reverse (Max) 35V
Current - Max 100 mA
Capacitance @ Vr, F 1.25pF @ 3V, 100MHz
Resistance @ If, F 500mOhm @ 10mA, 200MHz
Temperature Range - Operating 125°C (TJ)
Package / Case DO-204AH, DO-35, Axial
Supplier Device Package DO-35 (DO-204AH)
Base Product Number BA282
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
Standard Package 10,000
Win Source Part Number 973850-BA282-TR
Ultra Librarian 3D Model Ultra Librarian BA282-TR CAD Model

Description

The Vishay BA282-TR is a standard single diode that has a maximum peak reverse voltage of 35V and a maximum forward current of 100 mA.

  • Maximum Peak Reverse Voltage: 35V
  • Maximum Forward Current: 100 mA
  • Capacitance: 1.25pF @ 3V and 100MHz
  • Resistance: 500mOhm @ 10mA and 200MHz
  • Mounting Type: Axial
  • Category: Diodes - RF
  • MSL Level: 1 (unlimited)
  • REACH: Unaffected
  • HTSUS: 8541.10.0070
  • Product Status: Obsolete
  • Supplier: Vishay General Semiconductor - Diodes Division
