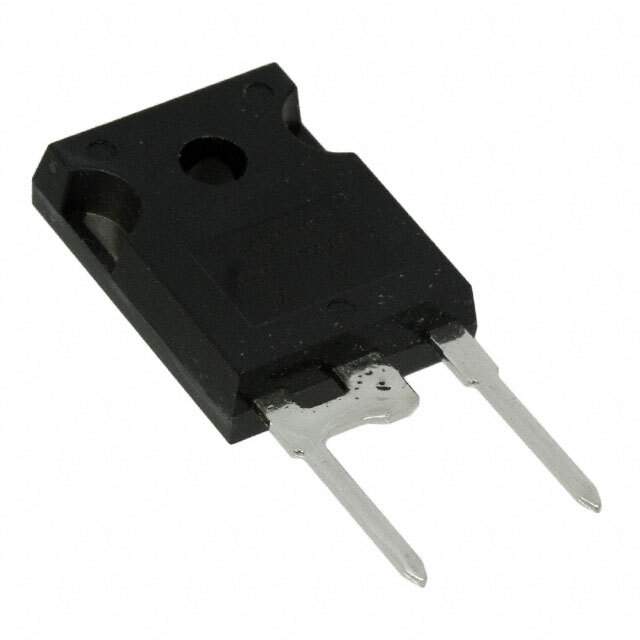

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Tube
Status Obsolete
Diode Type Standard
Voltage - DC Reverse (Vr) (Maximum) 1000V
Current - Average Rectified (Io) 30A
Voltage - Forward (Vf) (Maximum) at If 1.41V at 30A
Speed Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 450ns
Current - Reverse Leakage at Vr 100μA at 1000V
Mounting Style Through Hole
Manufacturer Package TO-247-2
Supplier Device Package TO-247AC Modified
Operating Temperature - Junction -40°C ~ 150°C
Manufacturer Pack Quantity 500
MSL Level 1 (Unlimited)
Win Source Part Number 1128022-30EPF10
Manufacturer Homepage www.irf.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 30EPF10 CAD Model

Description

The 30EPF10 is a fast recovery diode manufactured by Vishay Semiconductor Diodes Division.

  • Current Average Rectified (Io): 30A
  • Reverse Recovery Time (trr): 450ns
  • Suitable for: Use in standard diode applications
  • Voltage DC Reverse (Vr) (maximum): 1000V
  • Capacitance @ Vr: -
  • Packaging: TO-247AC modified
  • Status: Obsolete
  • Supply and Demand Status: Limited
  • Popularity Rating: Medium
  • MSL Level: 1 (unlimited)
  • Voltage Forward (Vf) (maximum) @ If: 1.41V @ 30A
  • Current Reverse Leakage @ Vr: 100μA @ 1000V
