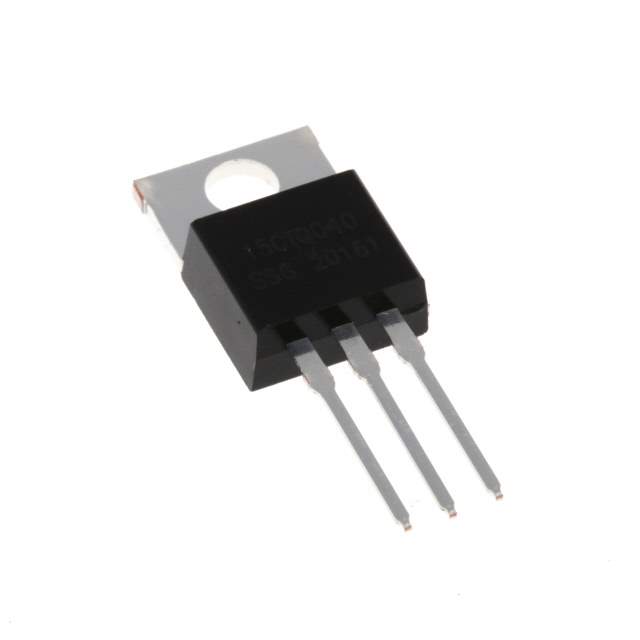

15CTQ040 Real Image
Same model may have multiple batches, images only for reference.

15CTQ040

Part No 15CTQ040
Manufacturer Vishay
Catalog Diodes, Rectifiers - Arrays
Description 20 AMP SCHOTTKY BARRIER RECTIFIERS | DIODE ARRAY SCHOTTKY 40V 7.TO220
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Tube
Status Obsolete
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 40V
Current - Average Rectified (Io) (per Diode) 7.5A
Voltage - Forward (Vf) (Maximum) at If 550mV at 7.5A
Speed Fast Recovery = 200mA (Io)
Current - Reverse Leakage at Vr 800μA at 40V
Operating Temperature - Junction -55°C ~ 150°C
Mounting Style Through Hole
Manufacturer Package TO-220-3
Supplier Device Package TO-220AB
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Win Source Part Number 1121329-15CTQ040
Manufacturer Homepage www.microsemi.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 15CTQ040 CAD Model

Description

The 15CTQ040 is a Schottky diode manufactured by Vishay Semiconductor Diodes Division.

  • Mounting Type: Through-Hole
  • Package: Tube
  • Maximum DC Reverse Voltage: 40V
  • Average Rectified Current: 7.5A per diode
  • Voltage Forward @ Maximum Current: 550mV
  • Diode Configuration: 1 Pair Common Cathode
  • Operating Temperature: -55°C to 150°C
  • Category: Discrete Semiconductor Products
  • Case/Package: TO-220AB
  • Recovery Speed: Fast, 200mA (Io)
  • Supply and Demand Status: Limited
  • Manufacturer Pack Quantity: 1,000
  • MSL Level: 1 (Unlimited)
  • Manufacturer Package: TO-220-3
