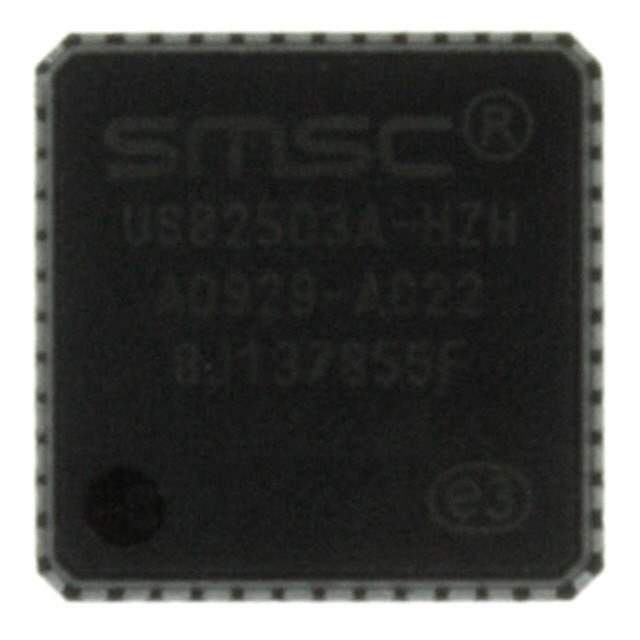

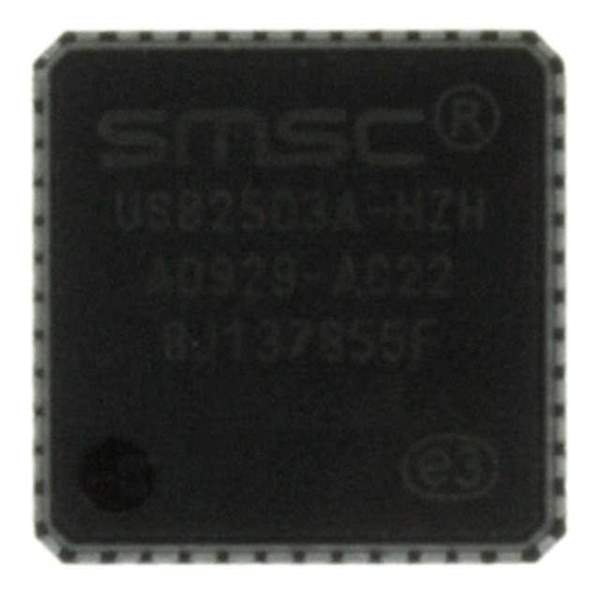

Microchip Technology's USB2503A-HZH: A High-Performance USB 2.0 Hub Controller

The USB2503A-HZH from Microchip Technology is a versatile and efficient solution for expanding USB capabilities in a variety of electronic devices. This high-quality USB 2.0 hub controller is designed to facilitate communication between a single USB host and multiple downstream USB devices, making it an ideal choice for embedded systems, consumer electronics, and PC peripherals.

Featuring a 3-port downstream configuration, the USB2503A-HZH offers a significant increase in the number of USB ports available on a system. This enables users to connect multiple devices simultaneously, such as keyboards, mice, storage devices, and other USB-compliant peripherals, without the need for additional hardware or complex wiring.

The device is built with an emphasis on performance and reliability, supporting high-speed (480 Mbps), full-speed (12 Mbps), and low-speed (1.5 Mbps) data rates. This ensures that the hub can handle a wide range of applications and devices, from high-bandwidth video streaming to simple input devices.

One of the key features of the USB2503A-HZH is its MultiTRAK™ technology, which provides multiple transaction translators. Each downstream port has its own dedicated transaction translator, allowing for efficient management of bandwidth, even when multiple full-speed and low-speed devices are connected. This technology helps to optimize throughput and minimize latency, ensuring a smooth and responsive user experience.

Additionally, the USB2503A-HZH is designed with ease of use in mind. It supports hot-swapping, allowing users to connect and disconnect devices without needing to power down the host system. The hub controller also provides overcurrent protection, safeguarding connected devices from potential power surges or short circuits.

For developers and designers, the USB2503A-HZH is a convenient solution that simplifies the design process. It requires minimal external components and is available in a compact 36-pin QFN package, making it suitable for space-constrained applications. With its comprehensive feature set and robust performance, the USB2503A-HZH is a top choice for expanding USB functionality in modern electronic systems.
