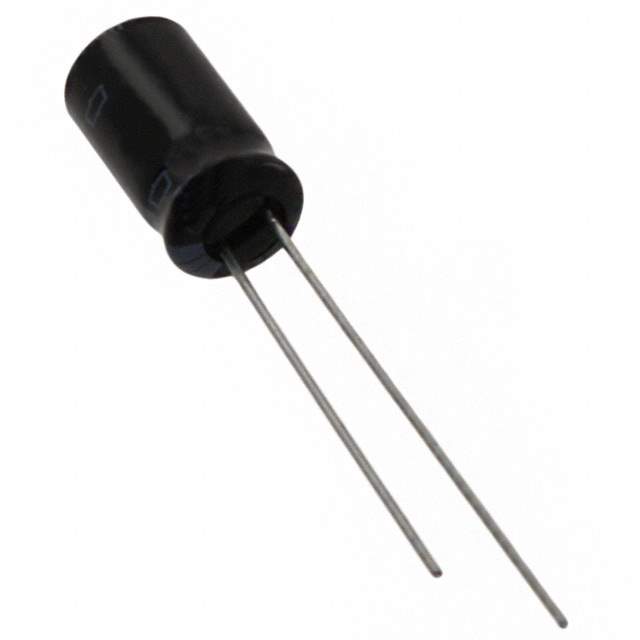

ESMG101ELL100MF11D Real Image
Same model may have multiple batches, images only for reference.

ESMG101ELL100MF11D

Part No ESMG101ELL100MF11D
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 10UF 20% 100V RADIAL / 10 µF 100 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series SMG
Package Bulk
Capacitance 10 µF
Tolerance ±20%
Voltage - Rated 100 V
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 75 mA @ 120 Hz
Ripple Current @ High Frequency 135 mA @ 100 kHz
Lead Spacing 0.098" (2.50mm)
Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.492" (12.50mm)
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 565-1148
Standard Package 2,000
Win Source Part Number 987285-ESMG101ELL100MF11D
Ultra Librarian 3D Model Ultra Librarian ESMG101ELL100MF11D CAD Model

Description

The SMG series aluminum electrolytic capacitor from United Chemi-Con is a high-quality, general-purpose capacitor designed for use in a variety of applications.

  • Capacitance: 10 µF
  • Voltage Rating: 100 V
  • Mounting Type: Through Hole
  • ESR: Not Specified
  • Ripple Current: 75 mA @ 120 Hz, 135 mA @ 100 kHz
  • Package: Radial, Can
  • Diameter: 0.248 inches
  • Height: 0.492 inches
  • Lead Spacing: 0.098 inches
  • Lifetime: 2000 Hours @ 85°C
  • Polarization: Polarized
  • Operating Temperature: -40°C to 85°C
