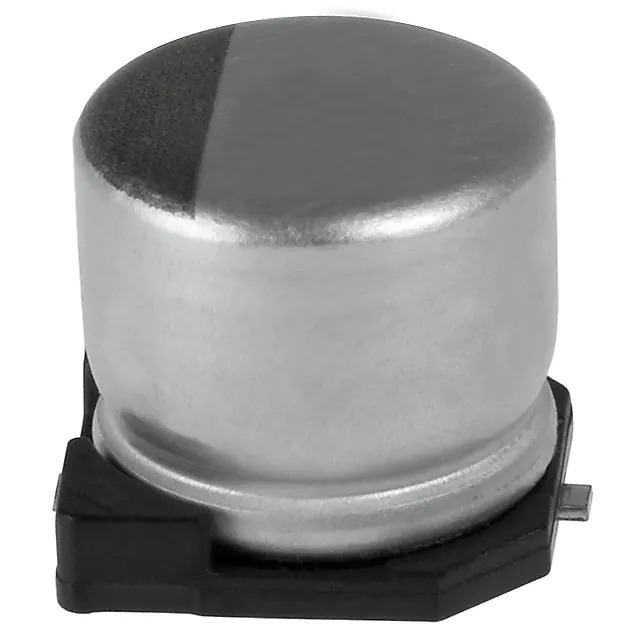

EMZA500ARA220MF61G United Chemi-Con
Same model may have multiple batches, images only for reference.

EMZA500ARA220MF61G

Part No EMZA500ARA220MF61G
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 22UF 20% 50V SMD / 22 µF 50 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series Alchip™- MZA
Package Tape & Reel
Product Status Active
Capacitance 22 µF
Tolerance ±20%
Voltage - Rated 50 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 66 mA @ 120 Hz
Ripple Current @ High Frequency 165 mA @ 100 kHz
Impedance 880 mOhms
Lead Spacing -
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.240" (6.10mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360295-EMZA500ARA220MF61G
Ultra Librarian 3D Model Ultra Librarian EMZA500ARA220MF61G CAD Model

Description

The 1360295-EMZA500ARA220MF61G is an aluminum electrolytic capacitor from the Alchip™- MZA series by United Chemi-Con. United Chemi-Con's 1360295-EMZA500ARA220MF61G has a capacitance of 22 µF and a voltage rating of 50 V.

  • Capacitance: 22 µF
  • Voltage Rating: 50 V
  • Series: Alchip™- MZA
  • Application: Automotive
  • Temperature Range: -55°C to 105°C
  • Lifetime: 2000 hours @ 105°C
  • Package: Radial, Can - SMD
  • Mounting Type: Surface Mount
  • Diameter: 0.248"
  • Height: 0.240"
  • Surface Mount Land Size: 0.260" L x 0.260" W
  • Polarization: Yes
  • Impedance: 880 mOhms
  • REACH: Unaffected
  • ECCN: EAR99
  • Status: Active
