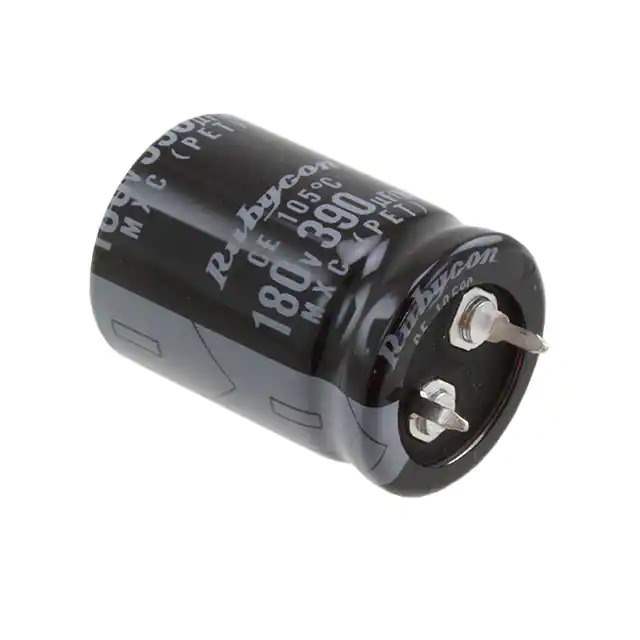

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series MXC
Package Bulk
Product Status Not For New Designs
Capacitance 4700 µF
Tolerance ±20%
Voltage - Rated 63 V
Lifetime @ Temp. 3000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 2.97 A @ 120 Hz
Ripple Current @ High Frequency 3.4155 A @ 10 kHz
Lead Spacing 0.394" (10.00mm)
Size / Dimension 1.181" Dia (30.00mm)
Height - Seated (Max) 1.457" (37.00mm)
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
Standard Package 100 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Win Source Part Number 856888-63MXC4700MEFCSN30X35
Ultra Librarian 3D Model Ultra Librarian 63MXC4700MEFCSN30X35 CAD Model

Description

The 856888-63MXC4700MEFCSN30X35 is a bulk aluminum electrolytic capacitor from the MXC series.

  • Capacitance: 4700µF
  • Voltage Rating: 63V
  • Tolerance: ±20%
  • Ripple Current (Low Frequency): 2.97A
  • Ripple Current (High Frequency): 3.4155A
  • Diameter: 1.181" (30.00mm)
  • Height: 1.457" (37.00mm)
  • Mounting Type: Through-Hole
  • Manufacturer: Rubycon
