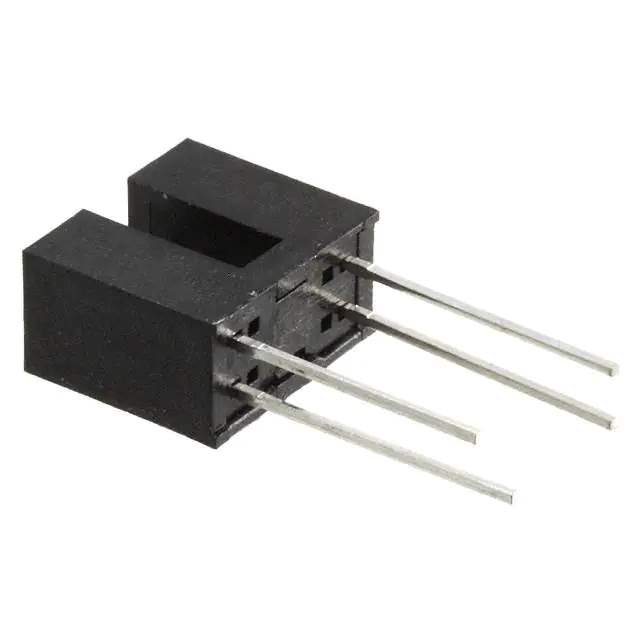

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Sensors, Transducers - Optical Sensors - Photointerrupters - Slot Type - Transistor Output
Mfr TT Electronics
Package Bulk
Product Status Active
Sensing Distance 0.125" (3.18mm)
Sensing Method Through-Beam
Output Configuration Phototransistor
Current - DC Forward (If) (Max) 50 mA
Current - Collector (Ic) (Max) 30 mA
Voltage - Collector Emitter Breakdown (Max) 30 V
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Chassis Mount
Package / Case Module, Pre-Wired
Type Unamplified
Base Product Number OPB871
Standard Package 100 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.8000
Win Source Part Number 848142-OPB871N55
Ultra Librarian 3D Model Ultra Librarian OPB871N55 CAD Model

Description

The 848142-OPB871N55 is a photointerrupter optical sensor from TT Electronics.

  • Sensor Type: Slot Type
  • Output Configuration: Unamplified
  • Collector-Emitter Breakdown Voltage: 30V
  • Maximum Collector Current: 30mA
  • Forward Current Rating: 50mA
  • Sensing Distance: 0.125" (3.18mm)
  • Mounting Type: Chassis Mount
  • Package: Pre-Wired
  • Operating Temperature: -40°C to 85°C
  • ECCN: EAR99
  • Product Status: Active
