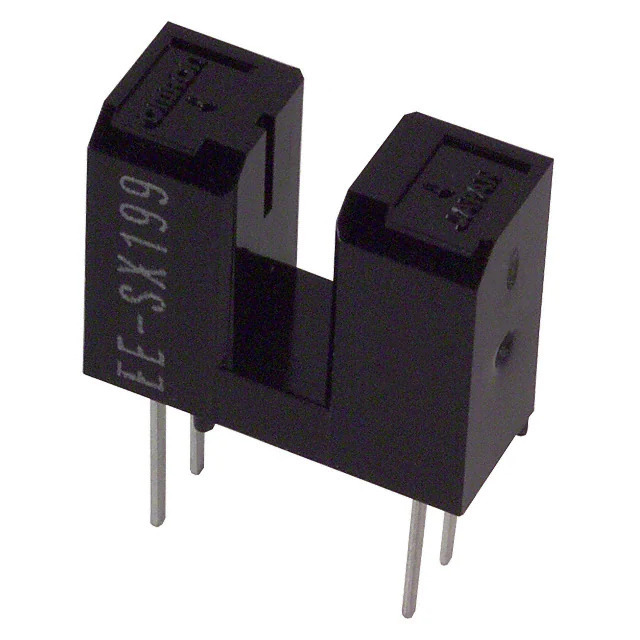

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Sensors, Transducers - Optical Sensors - Photointerrupters - Slot Type - Transistor Output
Mfr Omron Electronics Inc-EMC Div
Series -
Package Bulk
Product Status Active
Sensing Distance 0.118" (3mm)
Sensing Method Through-Beam
Output Configuration Phototransistor
Current - DC Forward (If) (Max) 50 mA
Current - Collector (Ic) (Max) 20 mA
Voltage - Collector Emitter Breakdown (Max) 30 V
Response Time 4µs, 4µs
Temperature Range - Operating -25°C ~ 85°C
Mounting Type Through Hole
Package / Case PCB Mount
Type Unamplified
MSL Level Not Applicable
ECCN EAR99
HTSUS 8541.49.8000
Win Source Part Number 1355325-EE-SX199
Ultra Librarian 3D Model Ultra Librarian EE-SX199 CAD Model

Description

The EE-SX199 is an optical sensor photointerrupter manufactured by Omron Electronics Inc-EMC Div.

  • Sensor Type: Unamplified Type
  • Mounting Type: Through Hole
  • Operating Temperature: -25°C ~ 85°C
  • Output Configuration: Phototransistor
  • Sensing Distance: 0.118" (3mm)
  • Response Time: 4µs
  • Product: Slot Type Photointerrupter
  • Packaging: Bulk
  • Lifecycle Status: Active
  • Current - Collector (Ic) (Max): 20mA
  • Voltage - Collector Emitter Breakdown (Max): 30V
  • Current - DC Forward (If) (Max): 50mA
