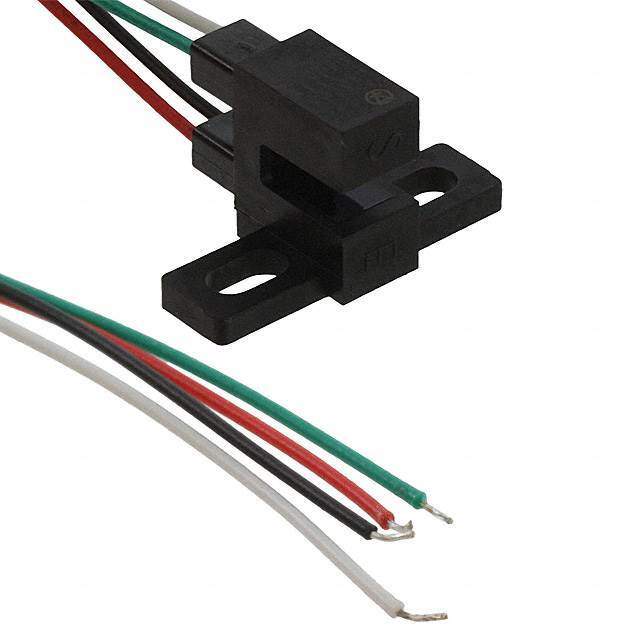

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Sensors, Transducers - Optical Sensors - Photointerrupters - Slot Type - Transistor Output
Mfr TT Electronics/Optek Technology
Package Bulk
Sensing Distance 0.125" (3.18mm)
Sensing Method Through-Beam
Output Configuration Phototransistor
Current - DC Forward (If) (Max) 50 mA
Current - Collector (Ic) (Max) 30 mA
Voltage - Collector Emitter Breakdown (Max) 30 V
Temperature Range - Operating -40°C ~ 80°C
Mounting Type Chassis Mount
Package / Case Module, Pre-Wired
Type Unamplified
Base Product Number OPB830
Standard Package 100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.8000
Win Source Part Number 1352316-OPB830W55Z
Ultra Librarian 3D Model Ultra Librarian OPB830W55Z CAD Model

Description

The TT Electronics/Optek Technology OPB830W55Z is an unamplified slot type photointerrupter optical sensor.

  • Sensing Distance: 0.125" (3.18mm)
  • Response Time: Less than 4µs
  • Voltage Collector Emitter Breakdown: 30V
  • Output Configuration: Phototransistor
  • Package: Module, Pre-Wired
  • Mounting Type: Chassis Mount
  • Current Collector (Ic) (Max): 30mA
  • Current DC Forward (If) (Max): 50mA
  • Operating Temperature: -40°C to 80°C
